Parameter list
7.2 Parameter list
SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
191
Parameter Function Range Factory
default
Can be
changed
Scaling Data
set
Data
type
Acc.
Level

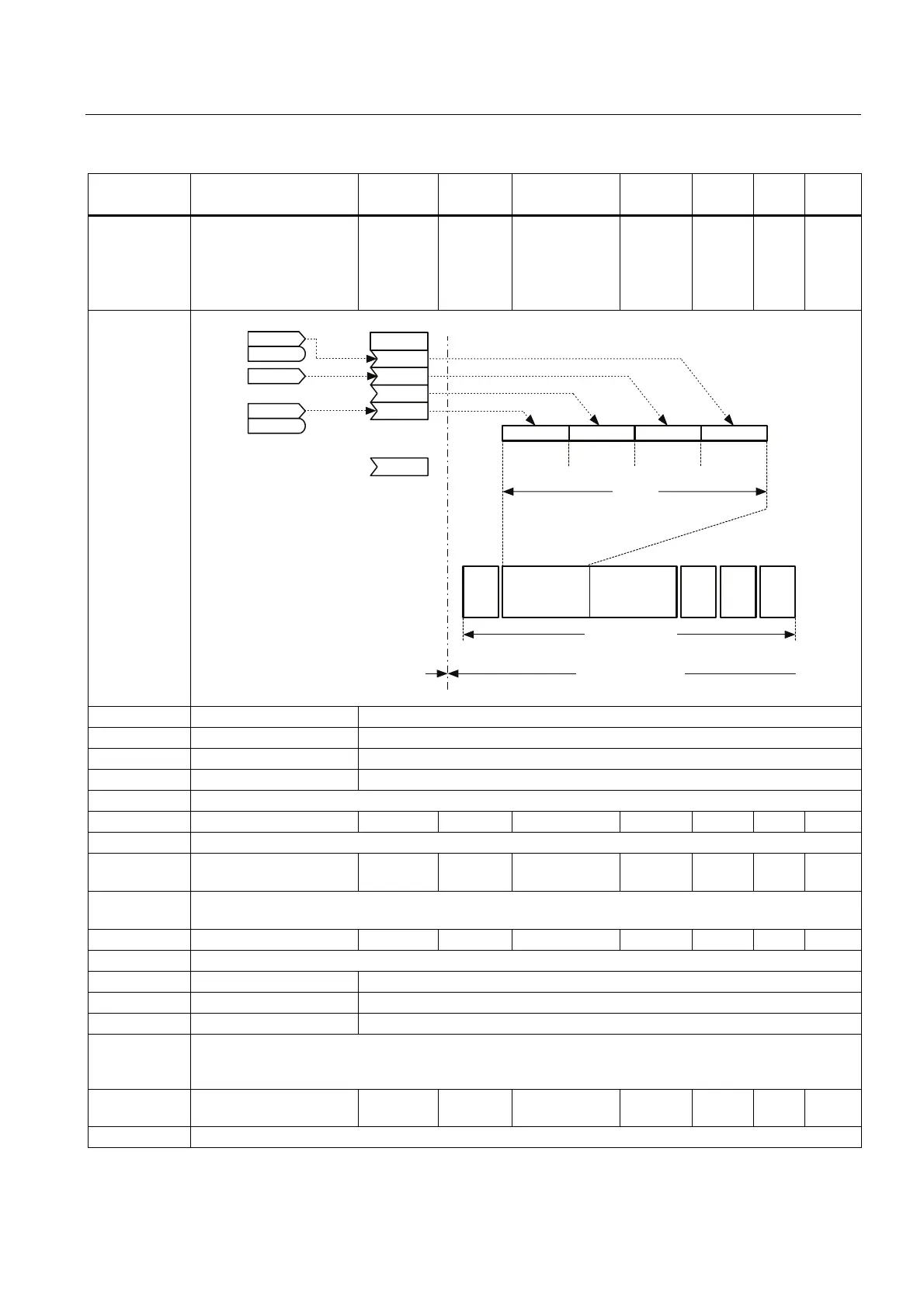

P2019[0...7] CI: PZD to USS /
MODBUS on RS485
- [0] 52[0]
[1] 21[0]
[2] 0
[3] 53[0]
[4...7] 0
T 4000H - U32 /
I16
3
Displays process data transmitted via USS / MODBUS on RS485.
3
3='
=6:
3='
+,:
3='3='
=6:
>@
>@
>@
>@
>@
67;
/*(
$'5
3.:
3='
%&&
=6:
+,:
U
U
U
U
U
67;/*($'5%&&
3URFHVVGDWD
866WHOHJUDP
USS on RS485
3DUDPHWHU
PZD mapping from parameter P2019
6WDUWRIWH[W
/HQJWK
$GGUHVV
3DUDPHWHU,'YDOXH
3URFHVVGDWD
%ORFNFKHFNFKDUDFWHU
6WDWXVZRUG
0DLQDFWXDOYDOXH
PZD PKW
3
Index: [0] Transmitted word 0
[1] Transmitted word 1
... ...
[7] Transmitted word 7
Note: If r0052 not indexed, display does not show an index (".0").
P2021 Modbus address 1 - 247 1 T - - U16 2
Sets unique address for inverter.
P2022 Modbus reply timeout
[ms]
0 - 10000 1000 U, T - - U16 3
The time in which the inverter is allowed to respond to the Modbus master. If the forming of a response
needs more time than specified in this parameter, the processing is done, but no response is sent.
P2023 RS485 protocol selection 0 - 2 1 T - - U16 1
Select the protocol which runs on the RS485 link.
0 None
1 USS
2 Modbus
Notice: After changing P2023, powercycle the inverter. During the powercycle, wait until LED has gone off or the
display has gone blank (may take a few seconds) before re-applying power. If P2023 has been changed
via a PLC, make sure the change has been saved to EEPROM via P0971.
r2024[0...1] USS / MODBUS error-
free telegrams
- - - - - U16 3
Displays number of error-free USS / MODBUS telegrams received.
