Siemens SINAMICS V20 Series

Options and spare parts
B.1 Options
SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
261

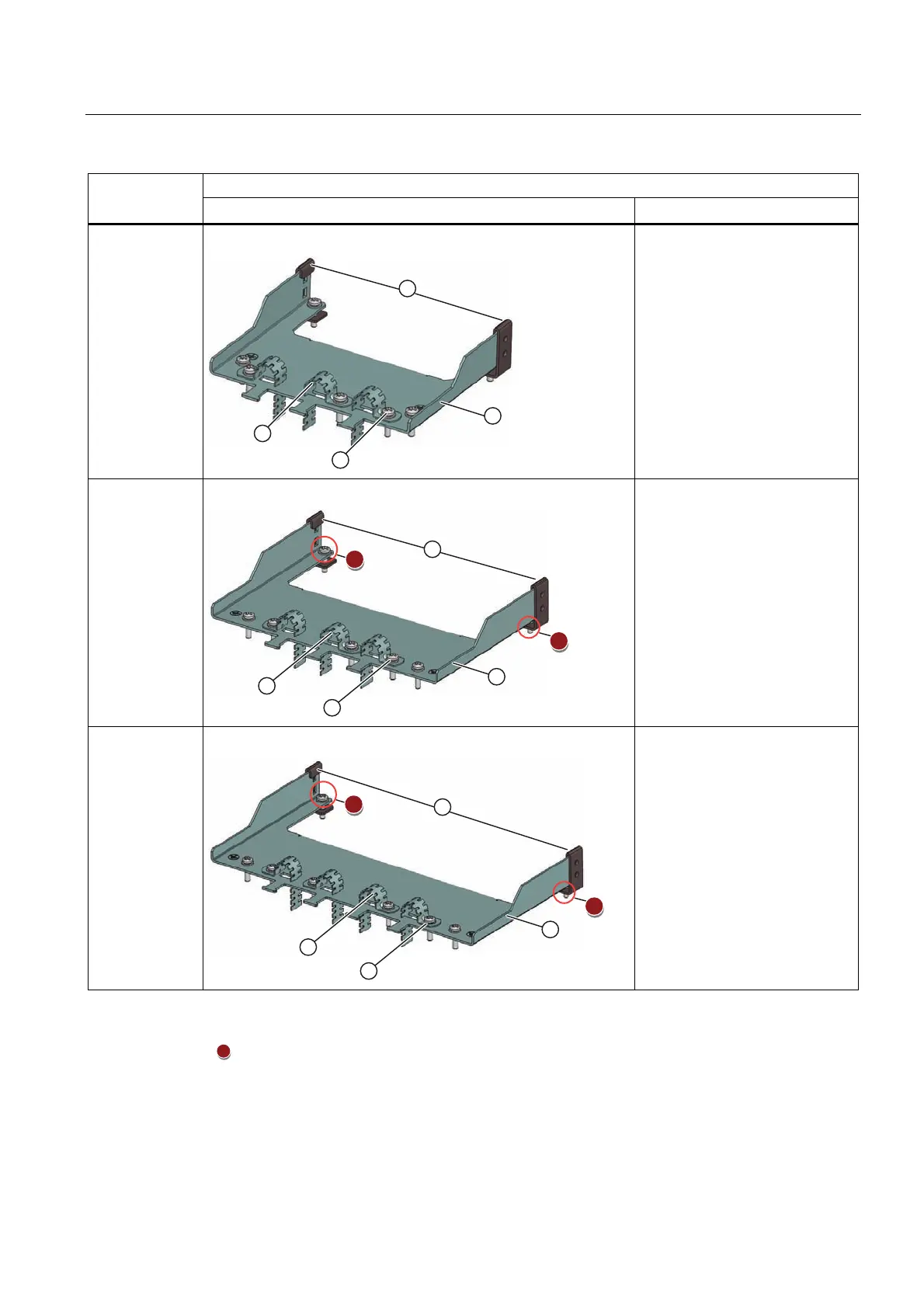

Screening plate kit Inverter variant
Illustration Components
Frame size B Order number: 6SL3266-1AB00-0VA0




① Screening plate
② 2 × clips
1)
③ 3 × cable screen clamps
④ 7 × M4 screws (tightening
torque: 1.8 Nm ± 10%)
Frame size C Order number: 6SL3266-1AC00-0VA0




$
$
① Screening plate
② 2 × clips
1)
③ 3 × cable screen clamps
④ 7 × M4 screws (tightening
torque: 1.8 Nm ± 10%)
2)
Frame size D Order number: 6SL3266-1AD00-0VA0




$
$
① Screening plate
② 2 × clips
1)
② 4 × cable screen clamps
④ 8 × M4 screws (tightening
torque: 1.8 Nm ± 10%)
2)
1)
The clips are required only when fixing the screening plate to the cabinet panel-mounted inverter.
2)
For "push-through" applications, you must use two M5 screws and nuts (tightening torque: 2.5 Nm ± 10%) rather than
two M4 screws ("
$
$
" in the illustration) to fix the screening plate to the inverter.
