Commissioning
5.6 Function commissioning
SINAMICS V20 Inverter
76 Operating Instructions, 07/2012, A5E03728167
U&%LW
U%LW
0RWRUH[FLWDWLRQ
ILQLVKHG
%UDNH
VWDWXV
2SHQ
&ORVHG
%UDNHUHOHDVHWLPH
,QDFWLYH
$FWLYH
2))2))
21
3
3
I
I
PLQ
3
W
W
W
W
W
W
2))
212))

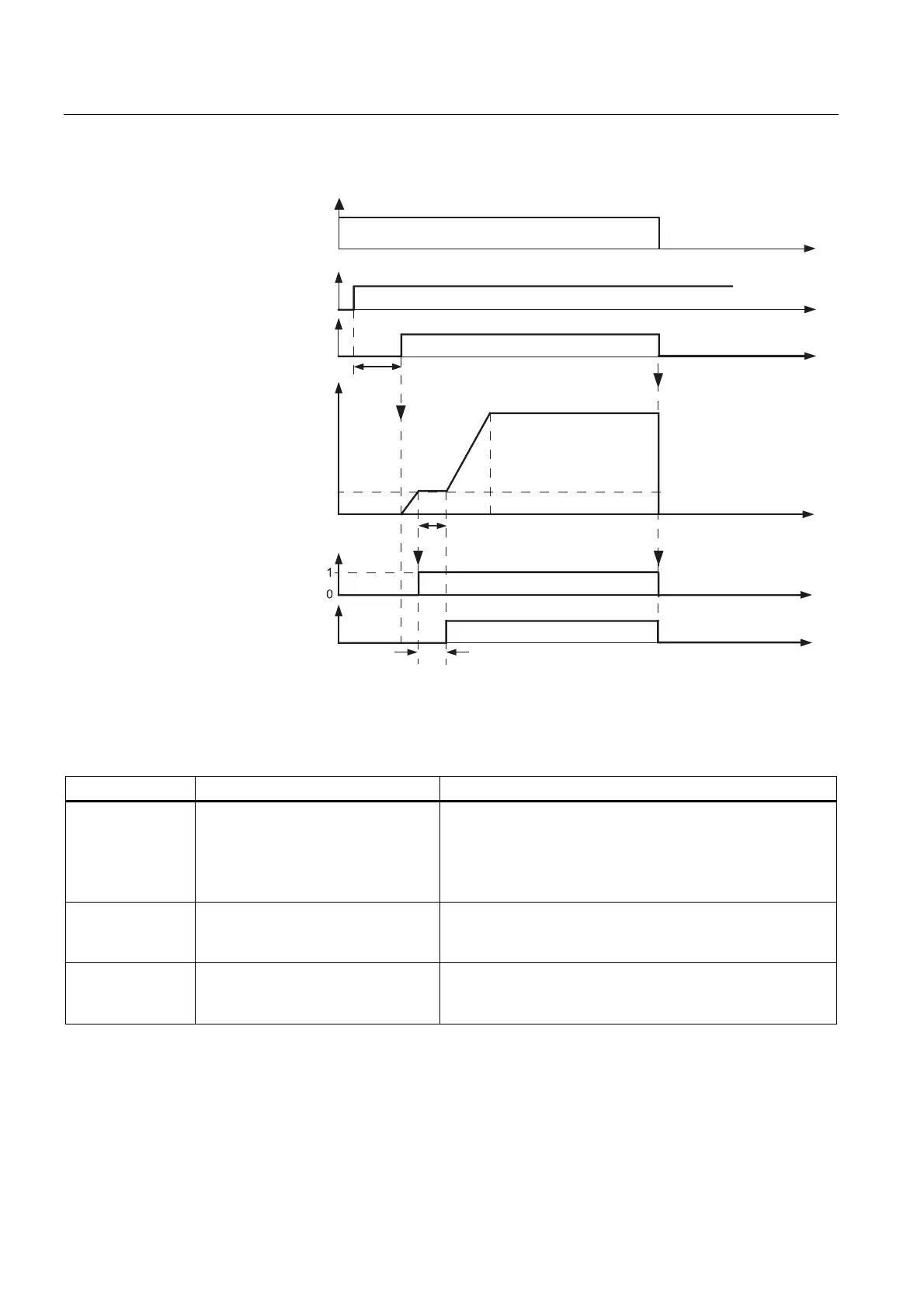

Setting parameters
Parameter Function Setting
P1215 Holding brake enable This parameter enables / disables holding brake function. The
motor holding brake (MHB) is controlled via status word 1
r0052 bit 12.
= 0: Motor holding brake disabled (factory default)
= 1: Motor holding brake enabled
P1216 Holding brake release delay[s] This parameter defines period during which inverter runs at
minimum frequency P1080 before ramping up.
Range: 0.0 ... 20.0 (factory default: 1.0)
P1217 Holding time after ramp down [s] This parameter defines time for which inverter runs at
minimum frequency (P1080) after ramping down.
Range: 0.0 ... 20.0 (factory default: 1.0)
