PLC Subroutines Manual
6FC5397-0FP40-0BA0, 08/2013
15

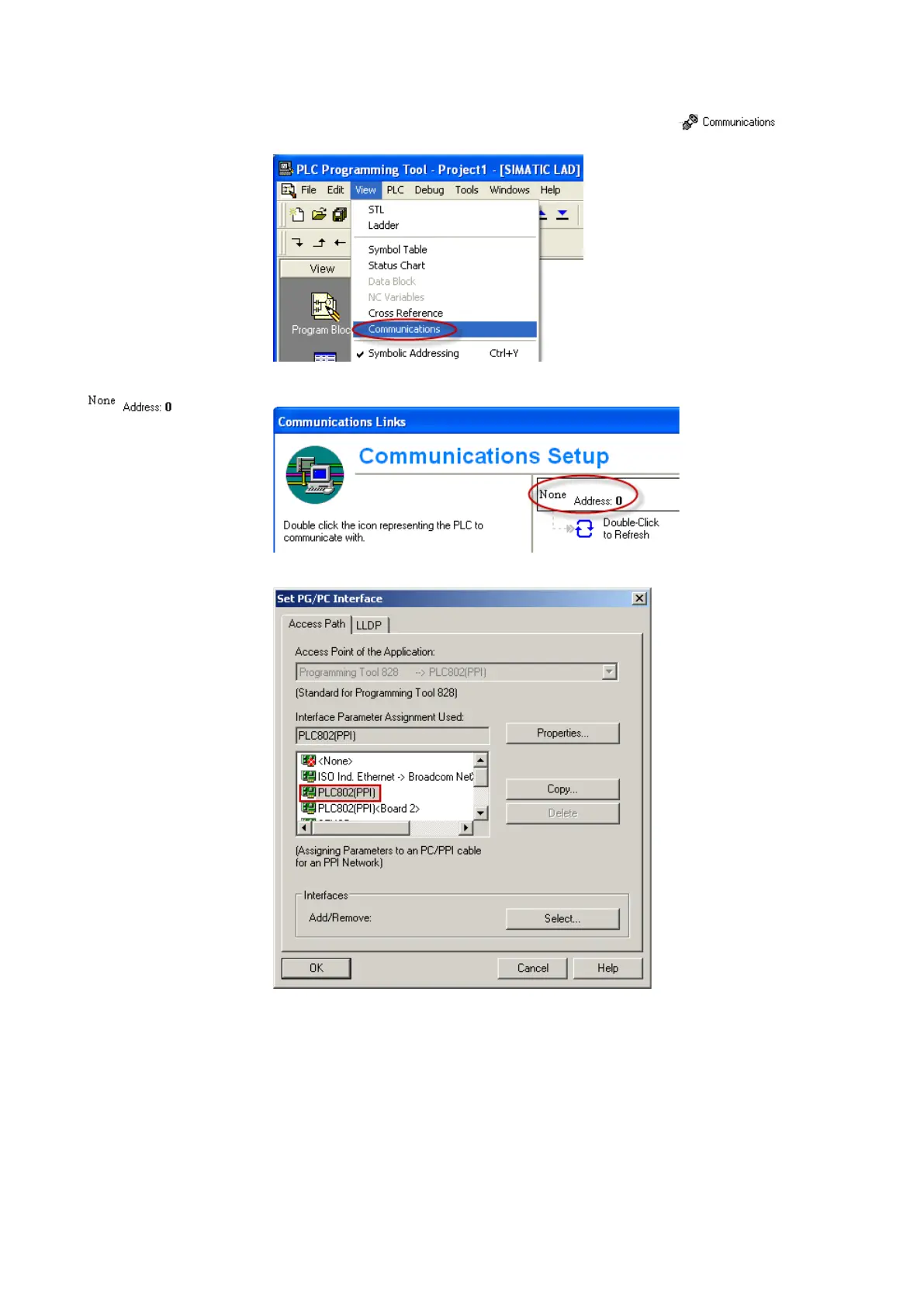

Alternatively, you can call the above dialog by double clicking the
icon in the
project tree or choosing from the main screen menu:
2. Double-click the access point symbol.
Then the following "Set PG/PC Interface" dialog is displayed.
Check the PG/PC interface being used. For RS232 communication, you must assign the
interface "PLC802(PPI)" to the PLC programming tool.
