8.5 6DR2801-8E (2DI 4DO)
Required settings in the basic unit:
2DI 4DO module in slot 3: S22=1
Allocation of the control signals to DI: S23 to S34
Logic of the control signals: S35 to S41
Allocation of the signals to DO3 to DO6: S59 to S75
Logic of the signals: S69 to S75
6 481
5 685
4 585
3 485
2 385
1 381
9L+
11 ⊥
>13 V
<4,5 V
or
DI4

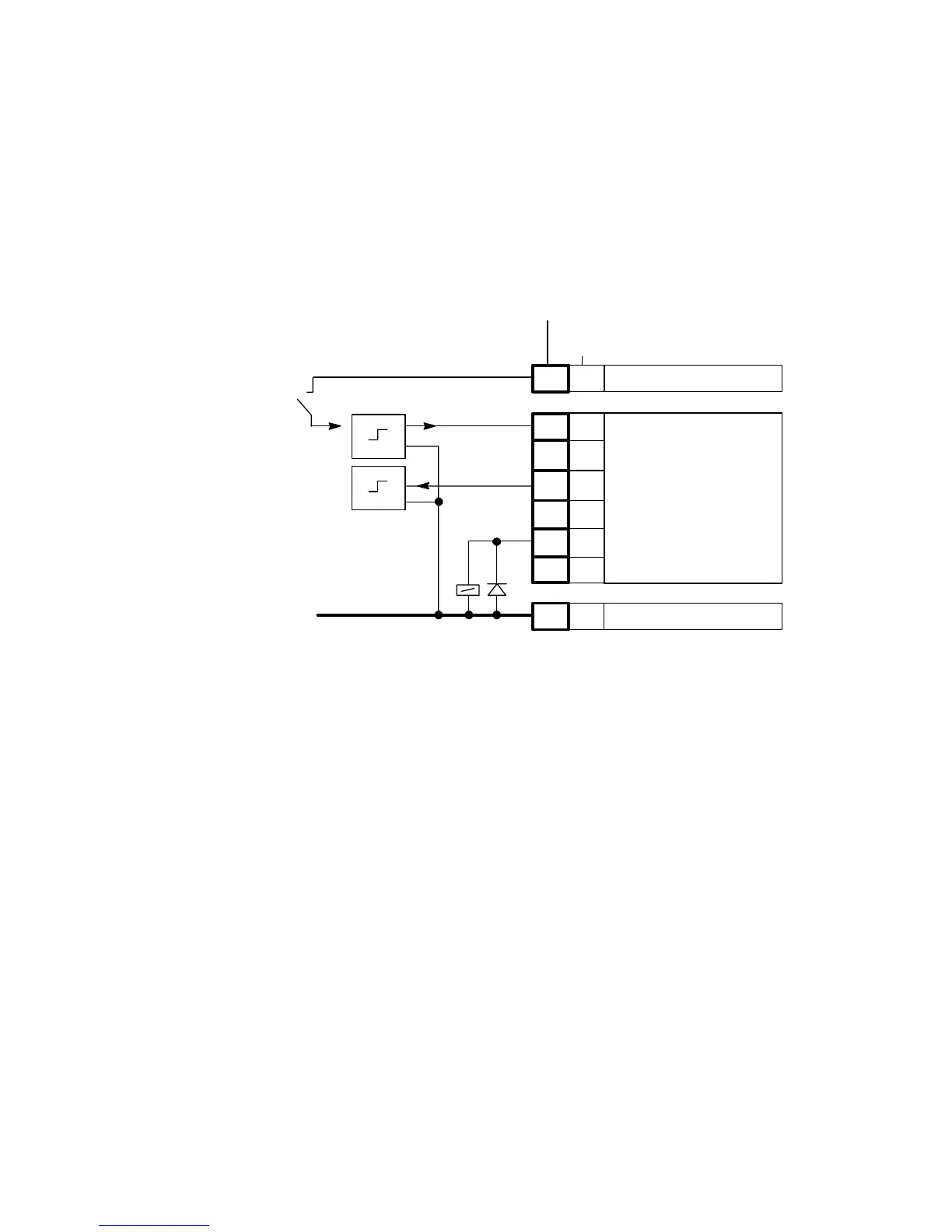

Configuration example for DI4 or DO3 and DO5
DO6
DO5
≥19 V
≤30 mA
DO4
DO3
Basic unit
Terminal blocks
Designation according
to DIN 45140
Basic unit
DI3
Configuration
switches
