Siemens SIPART DR19 - 6 DR2801-8 D (2 DO Rel.)

SIPART DR19
C73000-M7474-C34-4
40
8.6 6DR2801-8D (2DO Rel.)
Required settings in the basic unit:
2DO relay module in slot 3: S22=3
Allocation of the signals to DO3 and DO4: S59 to S75
Logic of the signals: S76 to S82
The relay contacts are only approved for switching
voltages up to 35 V AC/DC!
5 497
4 496
6 495

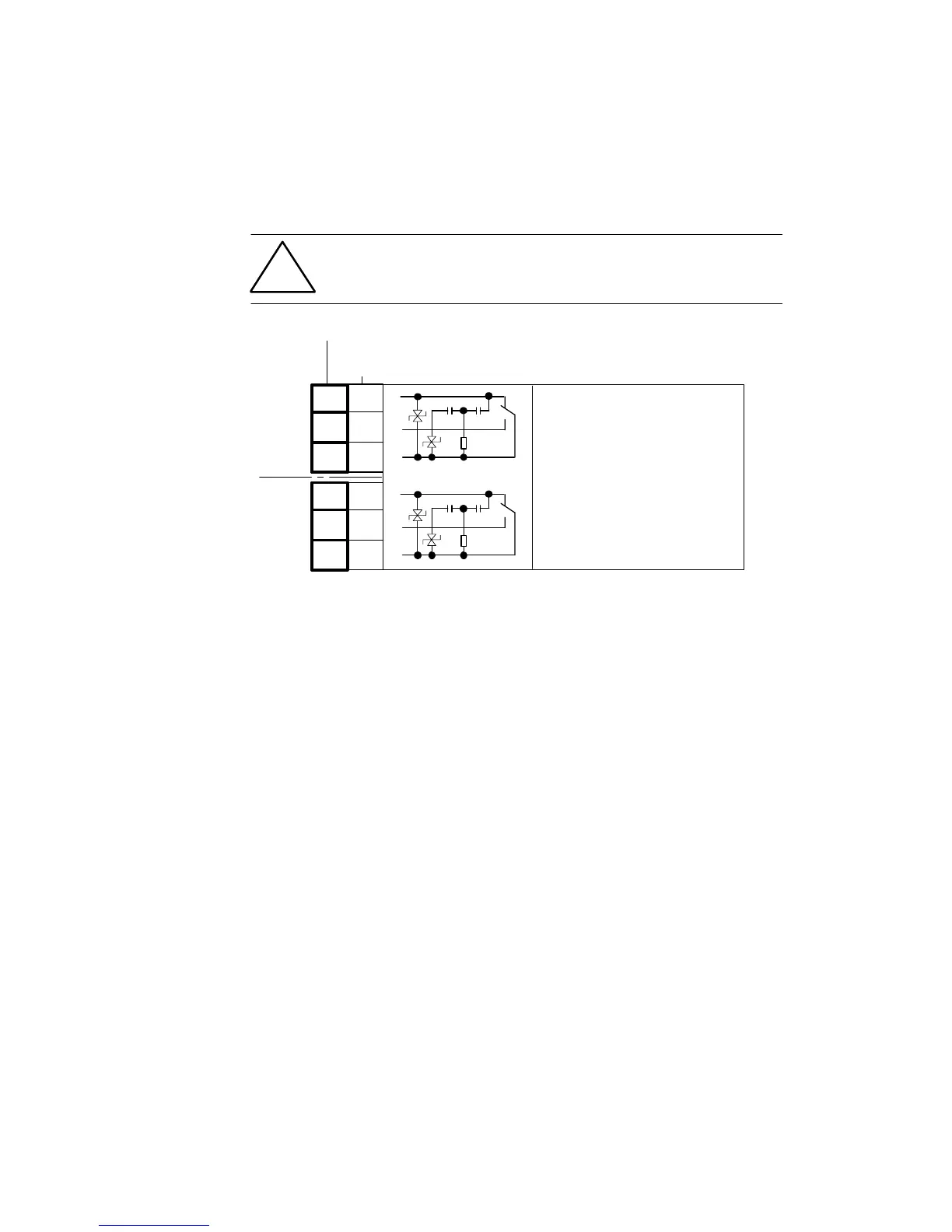

DO4
1μ
1μ
22 Ω
3 397
2 396
1 395
DO3
1μ 1μ
22 Ω
Terminal AC contact rating
U ≤35 V
I ≤5A
max. power ≤150 VA
Terminal DC contact rating
U ≤35 V
I ≤5A
max. power ≤80 W at 35 V
≤100 W at 24 V
Terminal blocks
Designation according
to DIN 45140
2x68 V AC
.....
........
2x68 V AC
.....
........
Configuration
switches
Important
!
