13.3 Positioner in flameproof enclosure
0
GHHS[
B
0
GHHS[
A
0
GHHS[
C
ෘ
ෘK
G
00RU
ಯ137[
F
D
E
① All air connections G¼ or ¼-18 NPT
② Air connection Y2, only with double-acting version

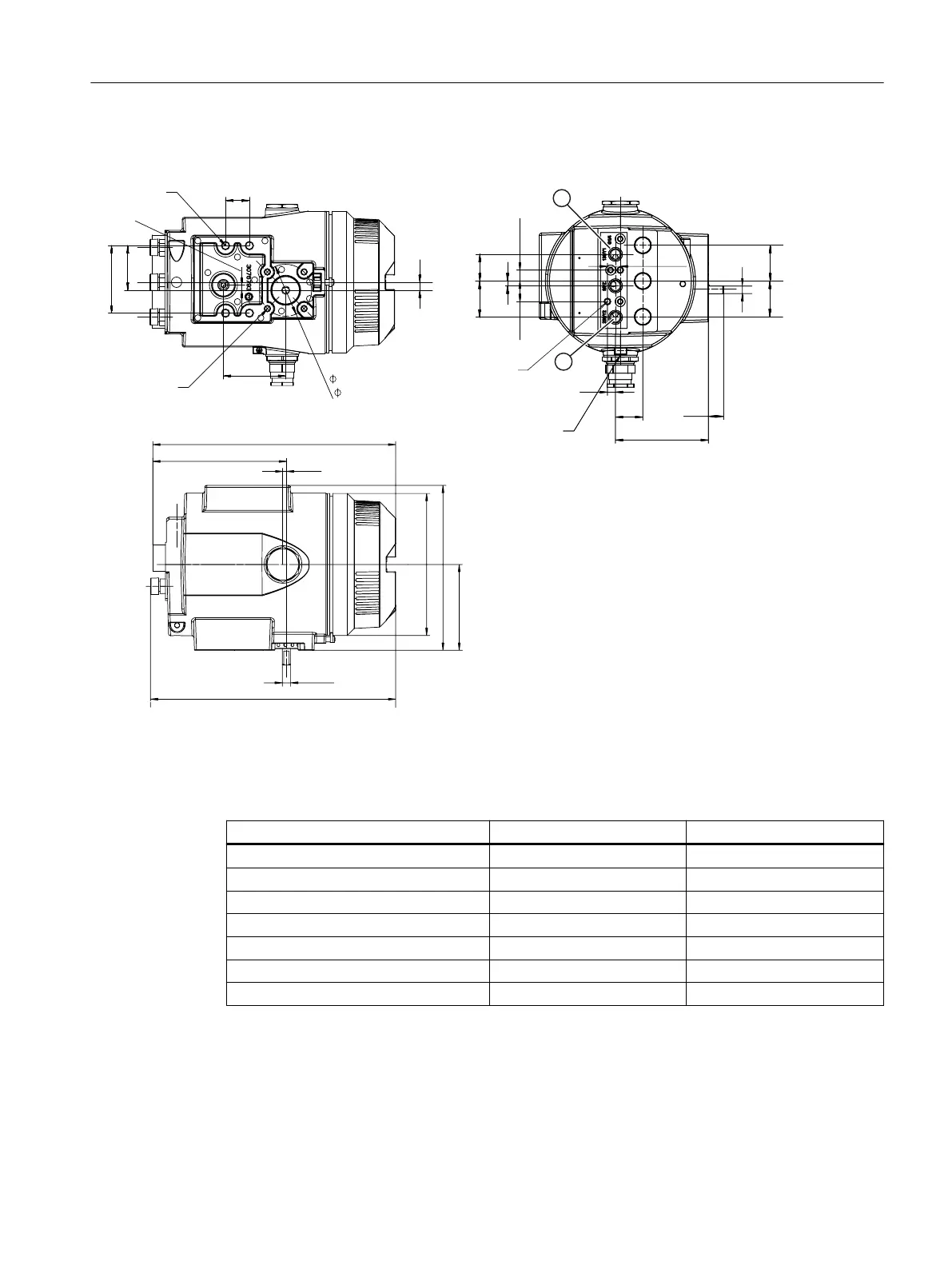

Figure 13-3 Dimensions of positioner in flameproof enclosure
6DR5..5 6DR5..6
A 5 [0.2] -
B 60 (2.36) -
C 25.7 (1.01) 21.7 (0.85)
D 33.5 (1.32) 25 [0.99]
E 33.5 (1.32) -
F 158.5 [6.24] 160 [6.3]
G 235.3 [9.26] 227.6 [8.96]
Dimensions in mm [inch]
6DR5..5 Aluminum enclosure, flameproof; dimensions with pneumatic connection G¼ or
1/4-18 NPT
6DR5..6 Stainless steel enclosure, flameproof
Dimension drawings
13.3 Positioner in flameproof enclosure
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 259
