Reference
For information on the scope of delivery, refer to section "Scope of delivery of NCS for linear
actuators up to 14 mm (0.55 inch) . (Page 286)".
B.2.2.3 Mounting on linear actuator > 14 mm (0.55 inch)
Requirement
1. An Analog Input Module (AIM) built into the positioner.
2. An NCS for linear actuators > 14 mm (0.55 inch) 6DR4004-.N.30.
3. Linear actuator with interface to NAMUR
Item no. based on the respective stroke range: 6DR4004-8V or 6DR4004-8V +
6DR4004-8L.
or
linear actuator without interface to NAMUR and individual mounting solution. Item No.
6DR4004-8VK or 6DR4004-8VL can be used as individual assembly solution, depending on
the stroke range.
Description

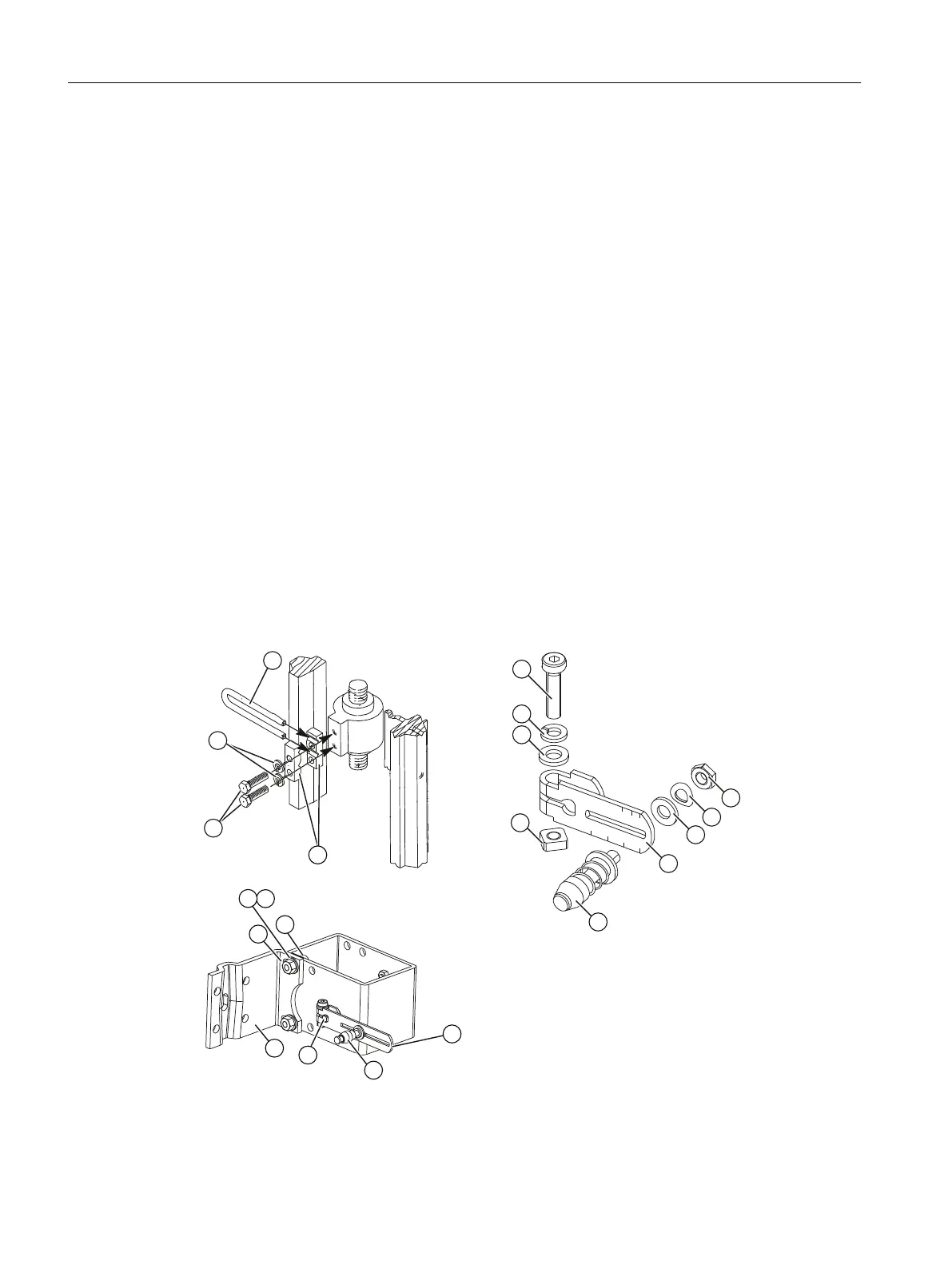

You can find the dimensions in the dimension drawing in the section "Scope of delivery of NCS
for linear actuators > 14 mm (0.55 inch) . (Page 287)".





















r



r




External position detection
B.2 Non-Contacting Sensor
SIPART PS2 with 4 to 20 mA/HART
278 Operating Instructions, 11/2019, A5E00074631-AE
