6.2 Operating modes
6.2.1 Overview of operating modes
You have five operating modes at your disposal to operate the positioner:
1. P-manual mode (as-delivered condition)
2. Configuration and initialization mode
3. Manual mode (MAN)
4. Automatic (AUT)
5. Diagnostics
6.2.2 Changing the operating mode

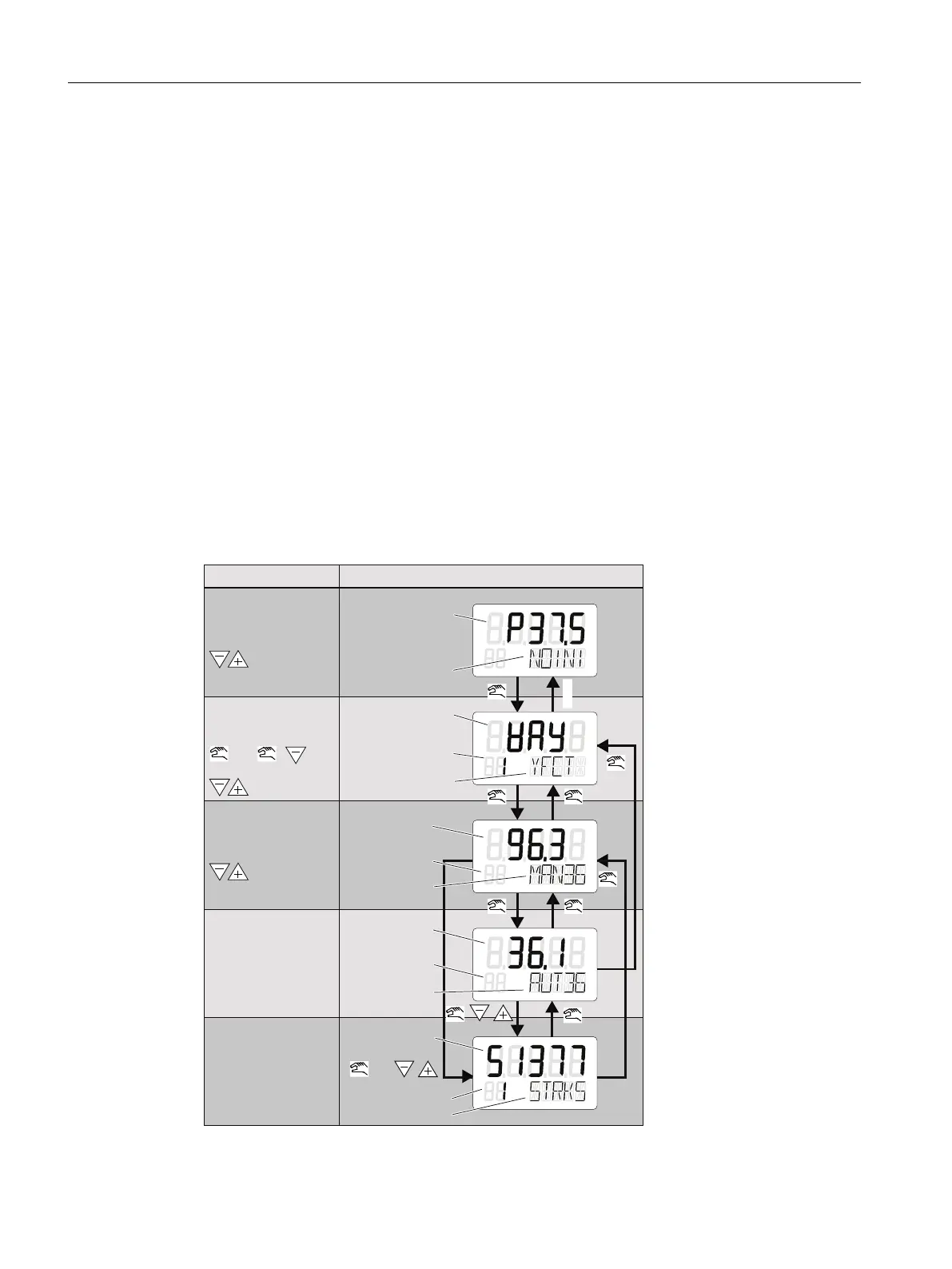

The following picture illustrates the available operating modes and switching between the
operating modes.
+ +
+ +
> 5 s
> 5 s
> 5 s
> 5 s
> 2 s
> 2 s > 2 s
> 2 s
1 x 1 x
PRST
+
Operating mode
Display (1)
P manual mode
Change position using:
Change position using:
Configure
Change parameter
name using:
or
Change value using:
Position of
potentiometer
[%]
Not initialized
Parameter value
Parameter number
Parameter name
Manual mode
Automatic mode
Diagnostics
Position[%]
Error code
Mode and
setpoint [%]
Position [%]
Error code
Mode and
setpoint [%]
Diagnostics value
Diagnostics number
Diagnostics name
Figure 6-3 Switching between the operating modes
Operating
6.2 Operating modes
SIPART PS2 with 4 to 20 mA/HART
98 Operating Instructions, 11/2019, A5E00074631-AE
