C. Tightening screws

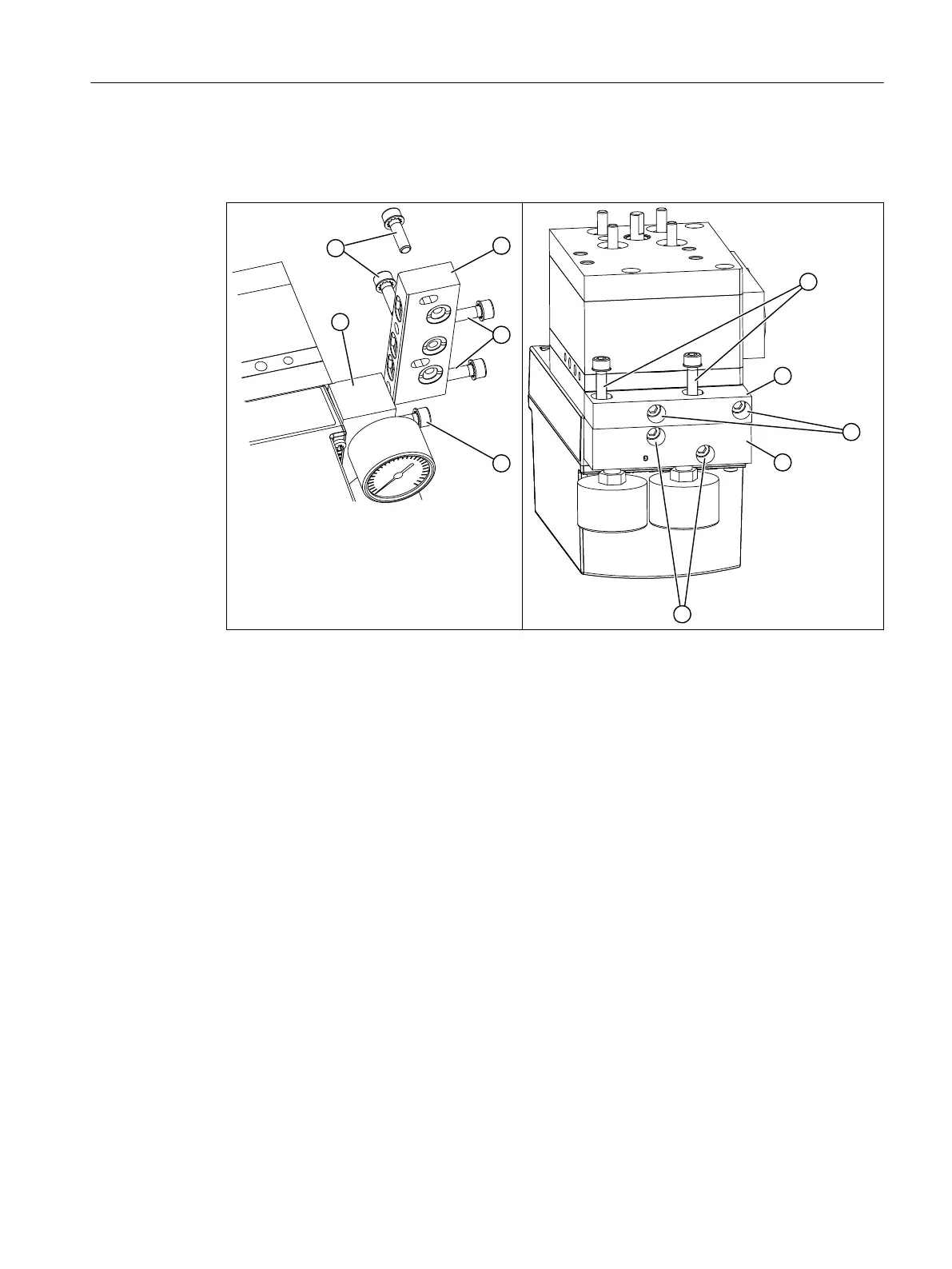

Tighten the screws in the following order.










1. Screws ⑦ which are used to fasten the pressure gauge block ⑥ to the positioner
2. Screws ⑫ which are used to fasten the connection block ⑨ to the booster
3. Screws ⑩ which are used to fasten the connection block ⑨ to the pressure gauge block ⑥
4. Mount the positioner on the actuator as described in:
– Mounting to linear actuator (Page 40)
– Mounting to part-turn actuator (Page 45)
5. Use the existing interfaces on the booster.
E.3 Booster commissioning
Requirement
1. You operate the positioner with a booster.
2. '51.PNEUM' Pneumatics type (Page 160) parameter is set to 'booSt'.
Booster
E.3 Booster commissioning
