B.2.6 Dimensional drawing of non-contacting sensor





r











5
%$
A NCS B Magnet

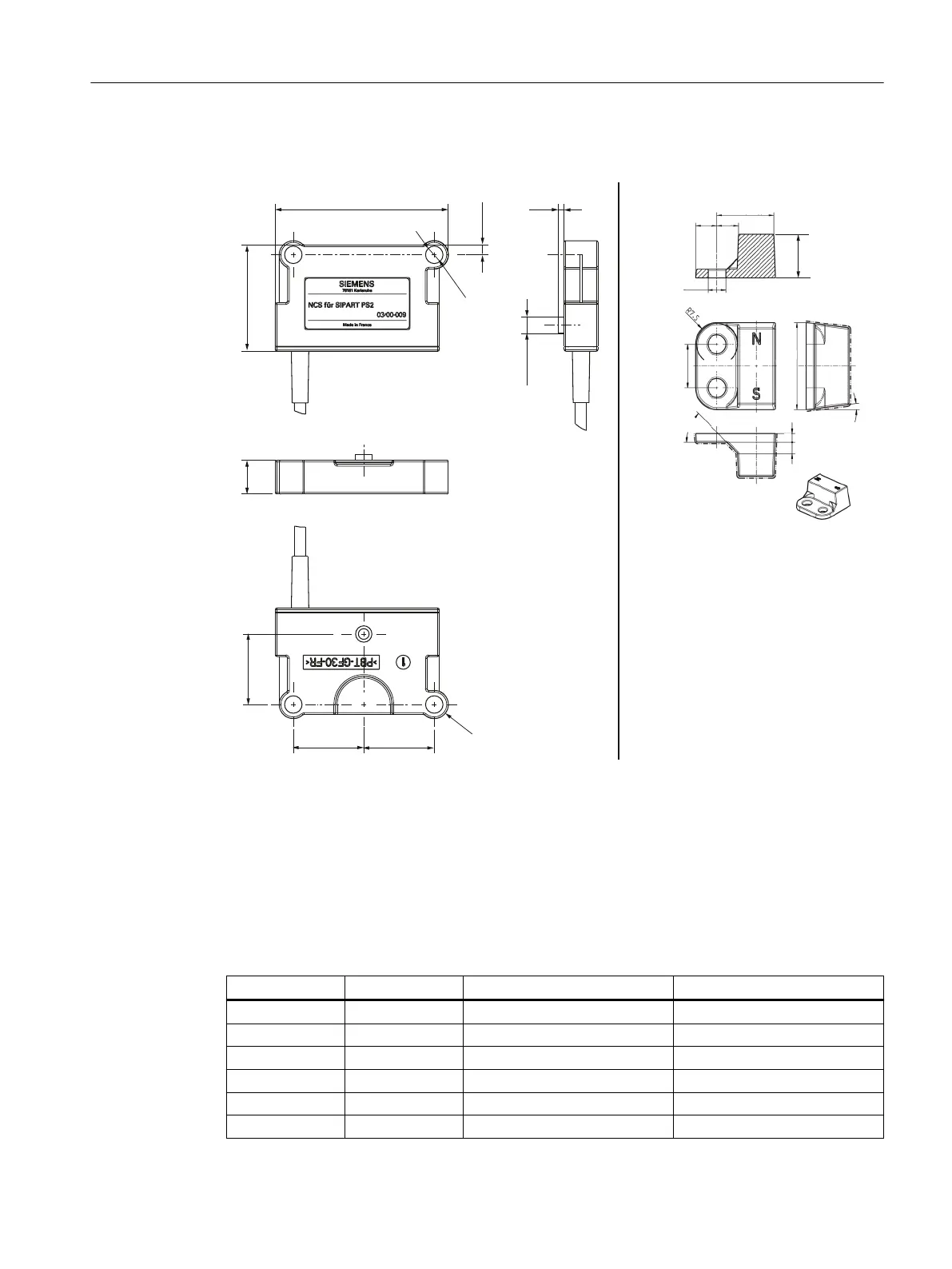

Figure B-8 Dimensional drawing of the NCS and magnet
B.2.7 NCS sensor scope of delivery
B.2.7.1 Scope of delivery of NCS for part-turn actuators
6DR4004-.N.10 6DR4004-.N.40
Quantity Quantity Name Note
1 1 Magnet clamp
5 5 Washer 6
2 2 Hex socket head screw M6x12
1 - Plastic washer
1 1 Magnet
External position detection
B.2 Non-Contacting Sensor
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 285
