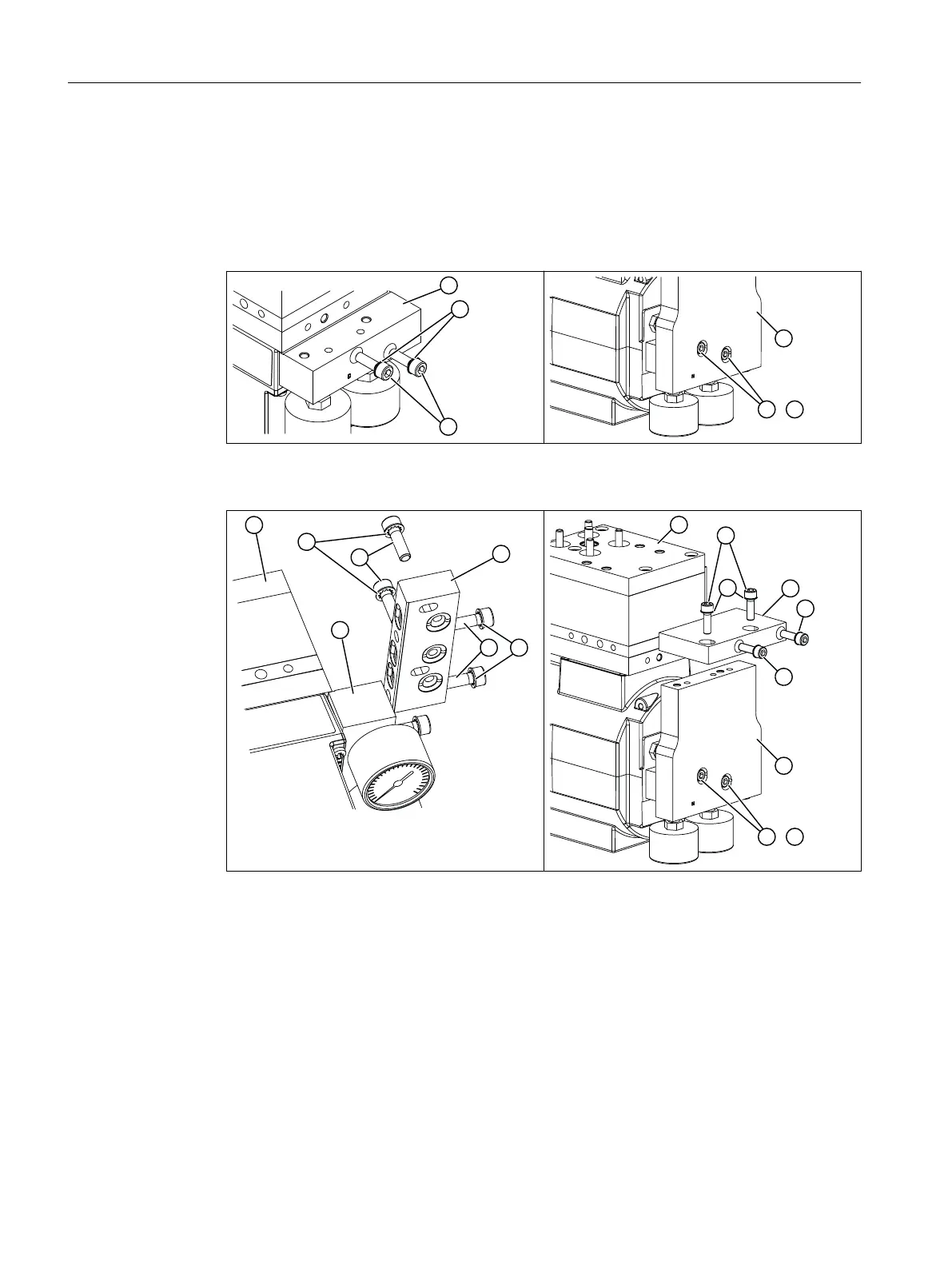

B. Mounting the pressure gauge and connection block
1. Check whether the O-rings are in the pressure gauge block. There are two O-rings in the
single-acting version. There are three O rings in the double-acting version.
2. Fasten the pressure gauge block ⑥ with the screws ⑦ and lock washers ⑧. Position the
screws, do not tighten them.






3. Fasten the connection block ⑨ with the screws ⑩, ⑫ and lock washers ⑪, ⑬. Position
the screws, do not tighten them.
















