Note
Properties of the cable
To avoid interference, the cable between 19" slide-in module, positioners 6DR59.. and field
distributors should have the following signal pairs (twisted pair):
● Discharge - / Discharge +
● Supply - / Supply +
● GND / POS
● V_REF GND
*URXQG
*URXQG
*URXQG
*URXQG
*URXQG

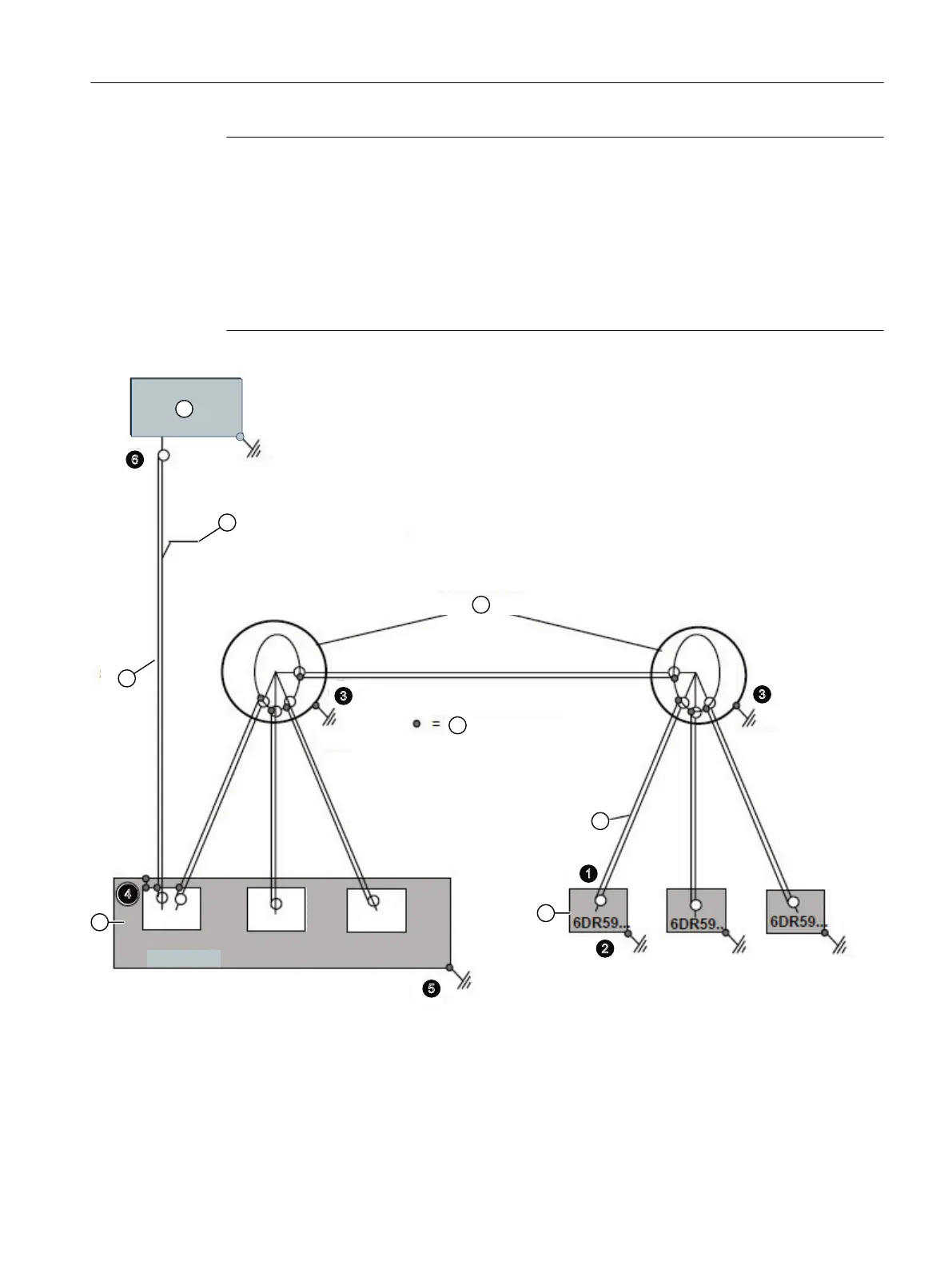

① Control system ⑤ Shield
② 3 x 1 cable to the control system ⑥ Positioner 6DR5910
③ Field distributor ⑦ 19" slide-in module
④ Connection point
Ground
Positioner with remote control electronics
F.2 19" slide-in module
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 313
