"Linear actuator IEC 60534 (3 to 35 mm)" mounting kit 6DR4004-8V and 6DR4004-8L
Sr. no.
*)
Quantity Name Note
⑧ 4 Hexagon bolt M8x20 DIN 933–A2
⑨ 2 Hexagon bolt M8x16 DIN 933–A2
⑩ 6 Spring lock washer A8 - DIN 127–A2
⑪ 6 Washer B8.4 - DIN 125–A2
⑫ 2 Washer B6.4 - DIN 125–A2
⑬ 1 Spring VD-115E 0.70 x 11.3 x 32.7 x 3.5
①1 Spring lock washer A6 - DIN 137A–A2
⑮ 1 Lock washer 3.2 - DIN 6799–A2
⑯ 3 Spring lock washer A6 - DIN 127–A2
⑰ 3 Socket cap screw M6x25 DIN 7984–A2
⑱ 1 Hexagon nut M6 - DIN 934–A4
⑲ 1 Square nut M6 - DIN 557–A4
⑳ 4 Hexagon nut M8 - DIN 934–A4
*)
The serial numbers refer to the images of the description of the installation steps below.
1. Install the clamping pieces â‘¢ on the actuator spindle.
2. Slide the pick-up bracket â‘¡ into the milled recesses of the clamping pieces â‘¢.

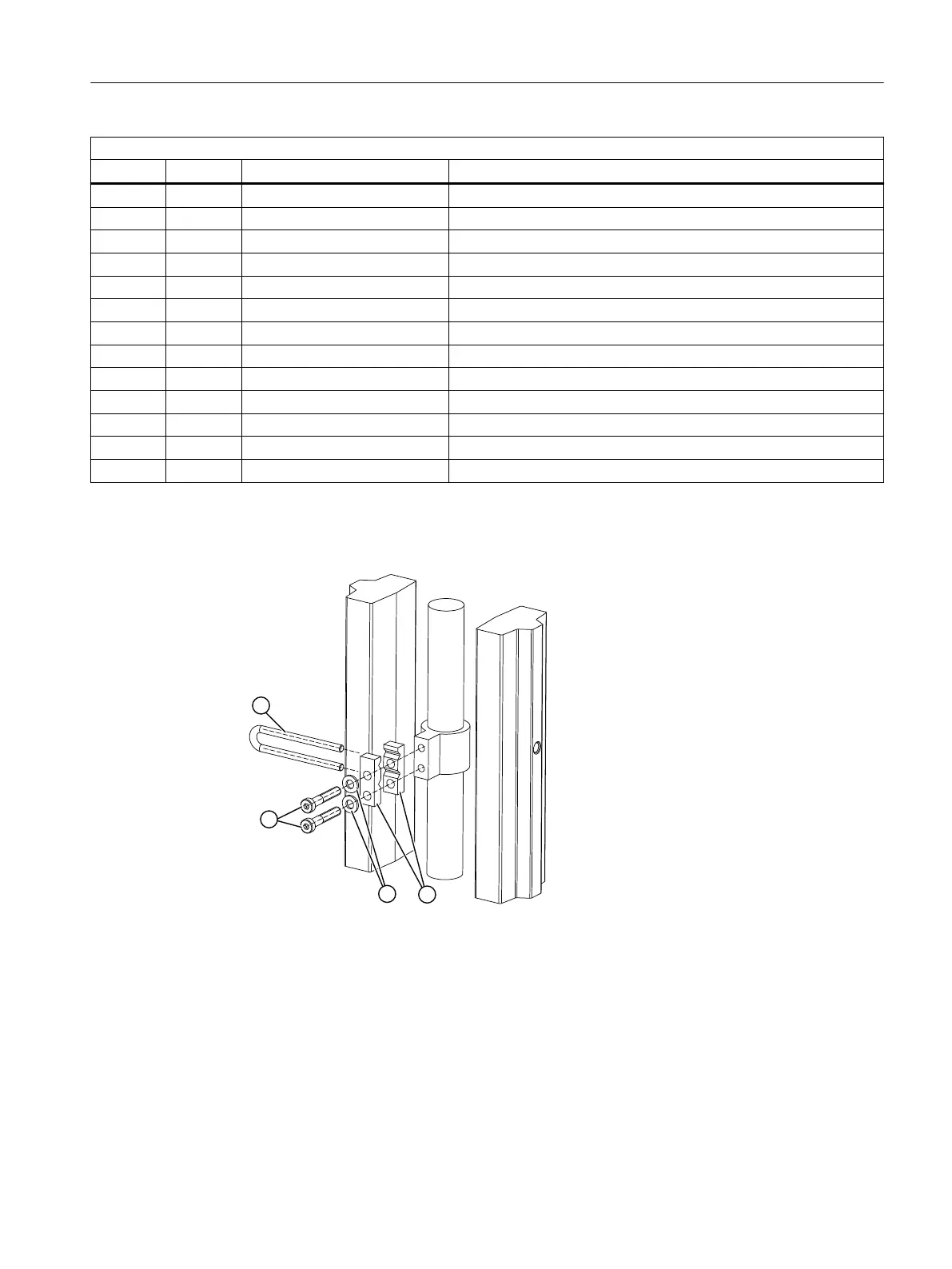

Figure 4-2 Pick-up bracket
3. Tighten the screws â‘° so that you can still shift the pick-up bracket â‘¡.
