3 Mounting and Commissioning
458
7SD5 Manual
C53000-G1176-C169-1

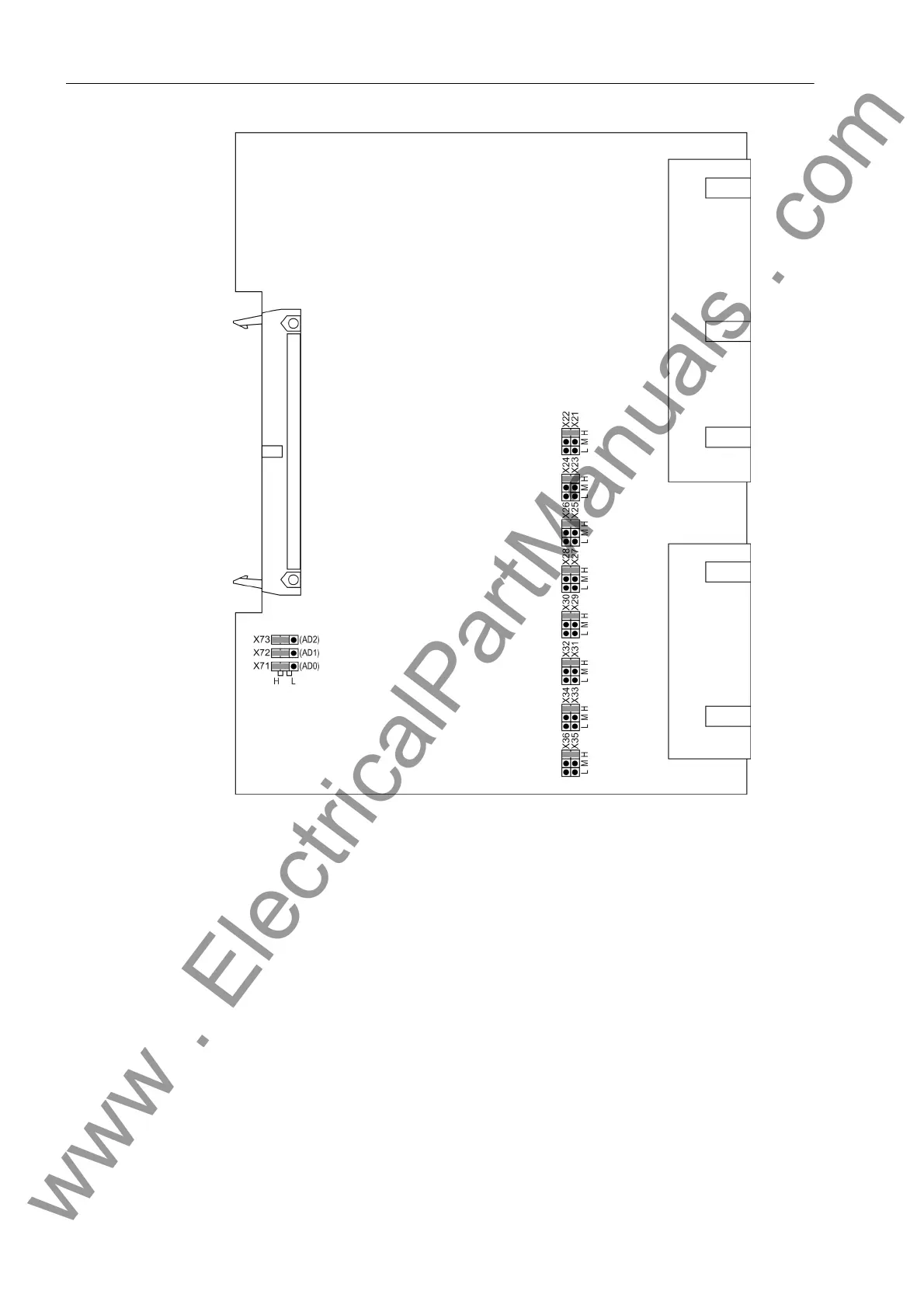

Figure 3-6 Input/output board C–I/O-10 with representation of the jumper settings required
for the board configuration
Checking the control voltages of the binary inputs:
BI1 to BI8 (with housing size
1
/
2
) according to Table3-5.
BI1 to BI24 (with housing size
1
/
1
) according to Table3-6.
