Siemens siprotec 7SD5

4.25 Dimensions
579
7SD5 Manual
C53000-G1176-C169-1
4.25.3 Panel Surface Mounting (Housing Size
1
/
2
)

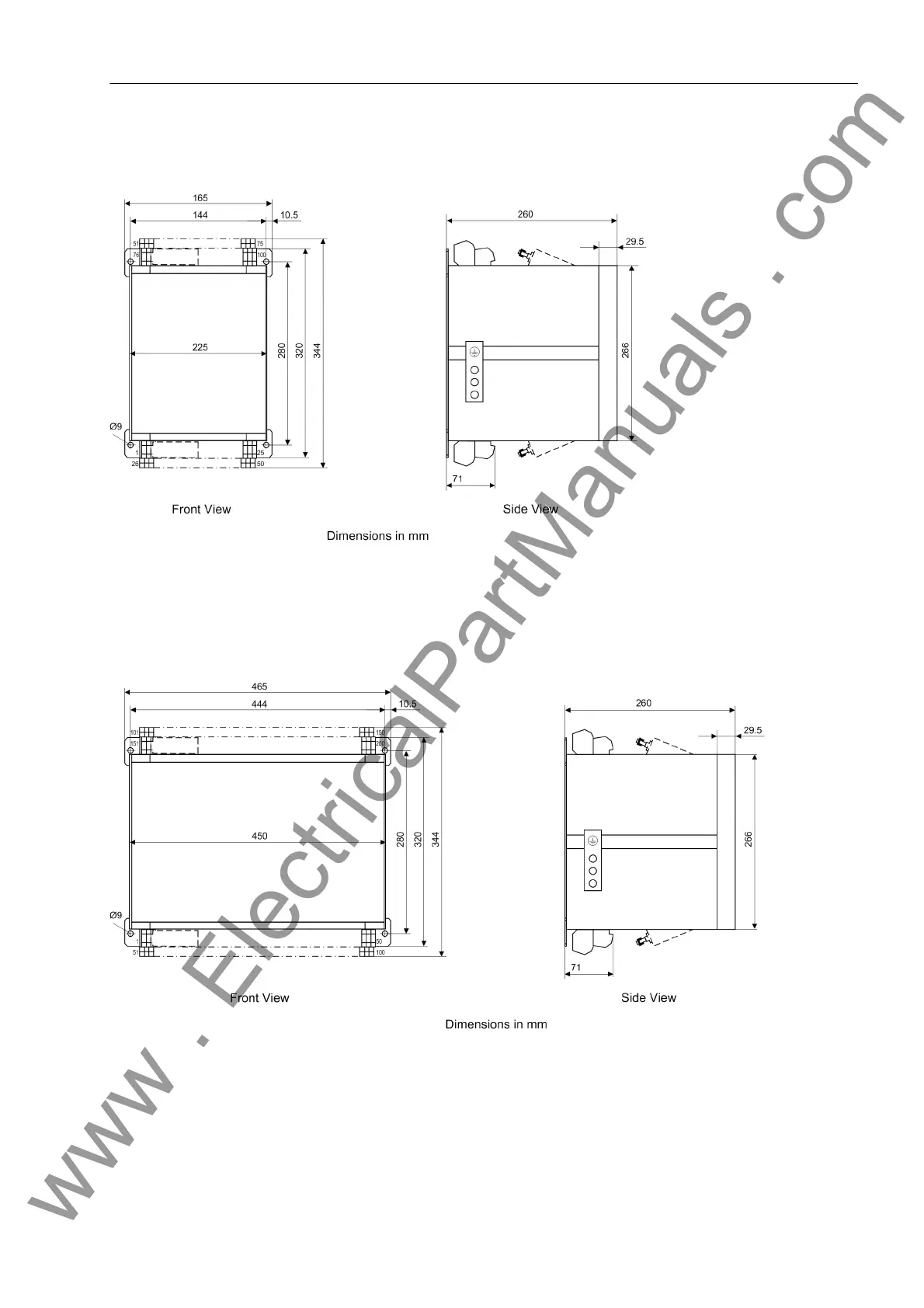

Figure 4-10 Dimensions of a device for panel surface mounting (size
1
/
2
)
4.25.4 Panel Surface Mounting (Housing Size
1
/
1
)
Figure 4-11 Dimensions of a device for panel surface mounting (size
1
/
1
)
■
