3 Mounting and Commissioning
496
7SD5 Manual
C53000-G1176-C169-1

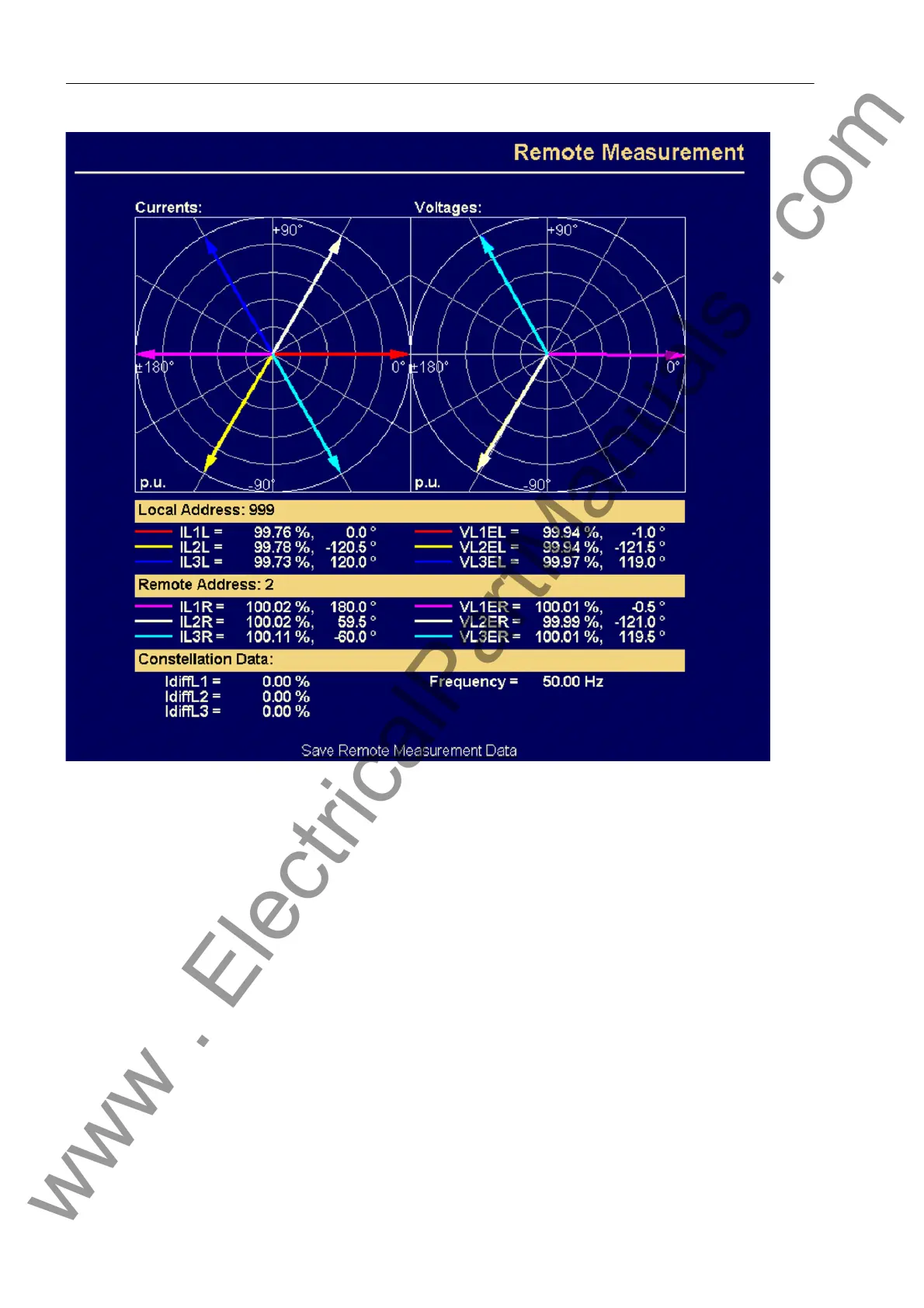

Figure 3-27 Local and remote measured values in the WEB-Monitor — examples for plausible measured values
P o l a r i t y C h e c k If the device is connected with voltage transformers, the local measured values
already provide a polarity test.
For more than two ends, one current path is continued to be tested first. A load current
of at least 5% of the rated operational current is required. Any direction is possible but
must be known.
