4 Technical Data
548
7SD5 Manual
C53000-G1176-C169-1

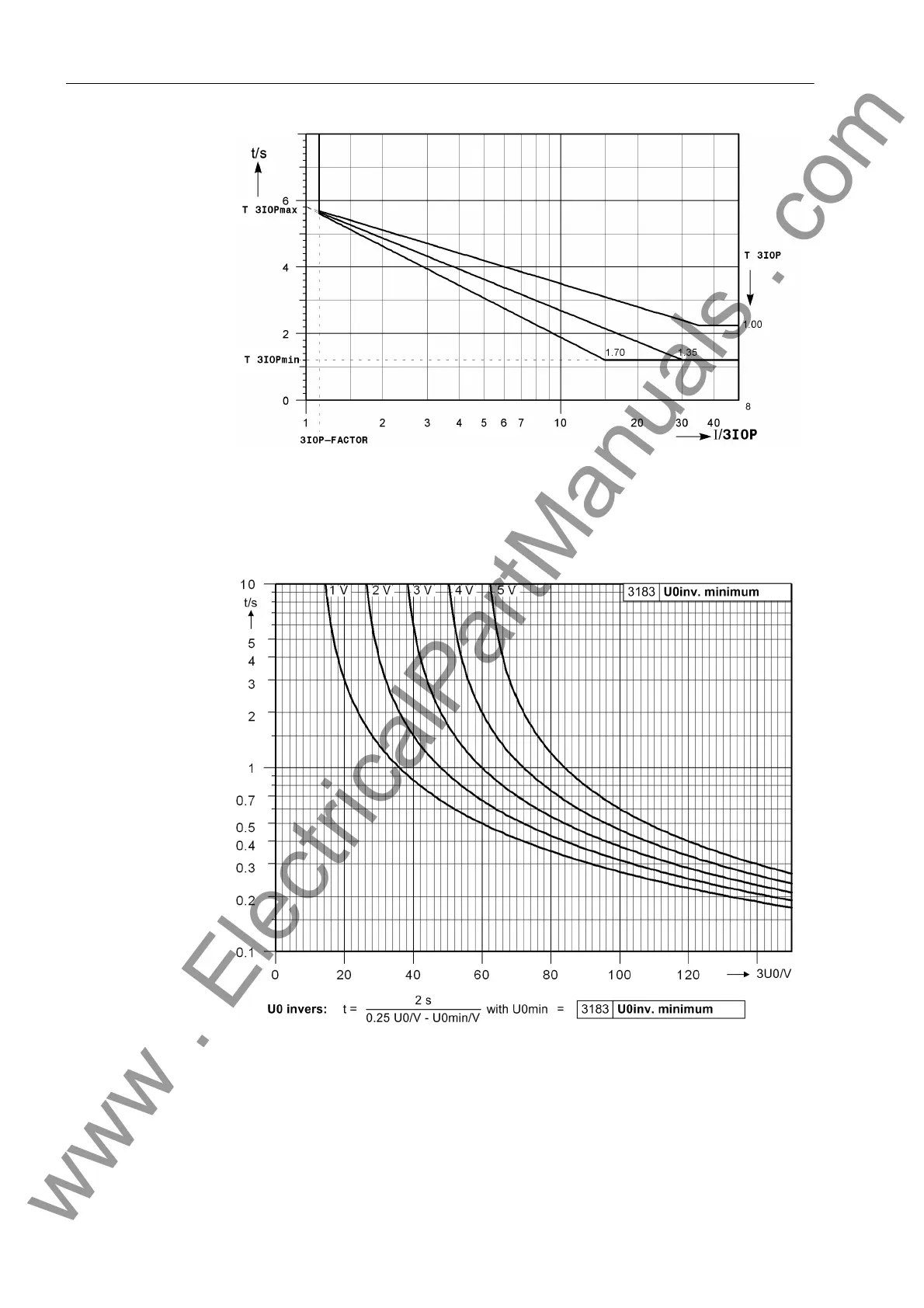

Figure 4-4 Trip time caracteristic of the inverse time overcurrent stage with logarithmic-
inverse characteristic
Logarithmic inverse t = T
3I0Pmax
— T
3I0P
·ln(I/3I0P)
Note: For I/3I0P > 35, the time for I/3I0P = 35 applies
Figure 4-5 Trip time characteristics of the zero sequence voltage protection U
0 inverse
