A Appendix
608
7SD5 Manual
C53000-G1176-C169-1

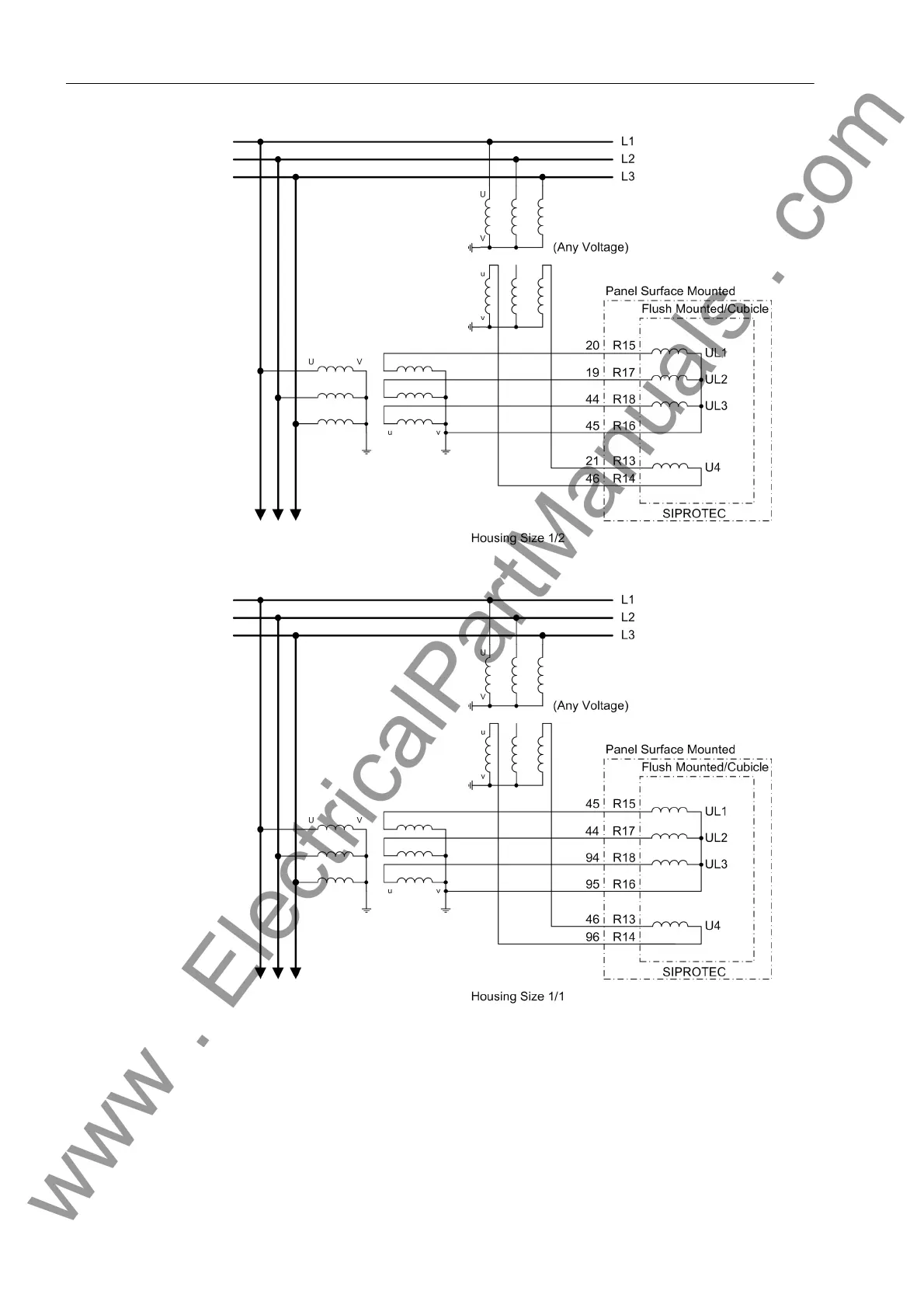

Figure A-19 Voltage connections to three wye-connected voltage transformers and addition-
ally to a busbar voltage (for overvoltage protection or synchronism check)
