4.4 Time Overcurrent Protection for Phase and Residual Currents
445
7UT613/63x Manual
C53000-G1176-C160-2

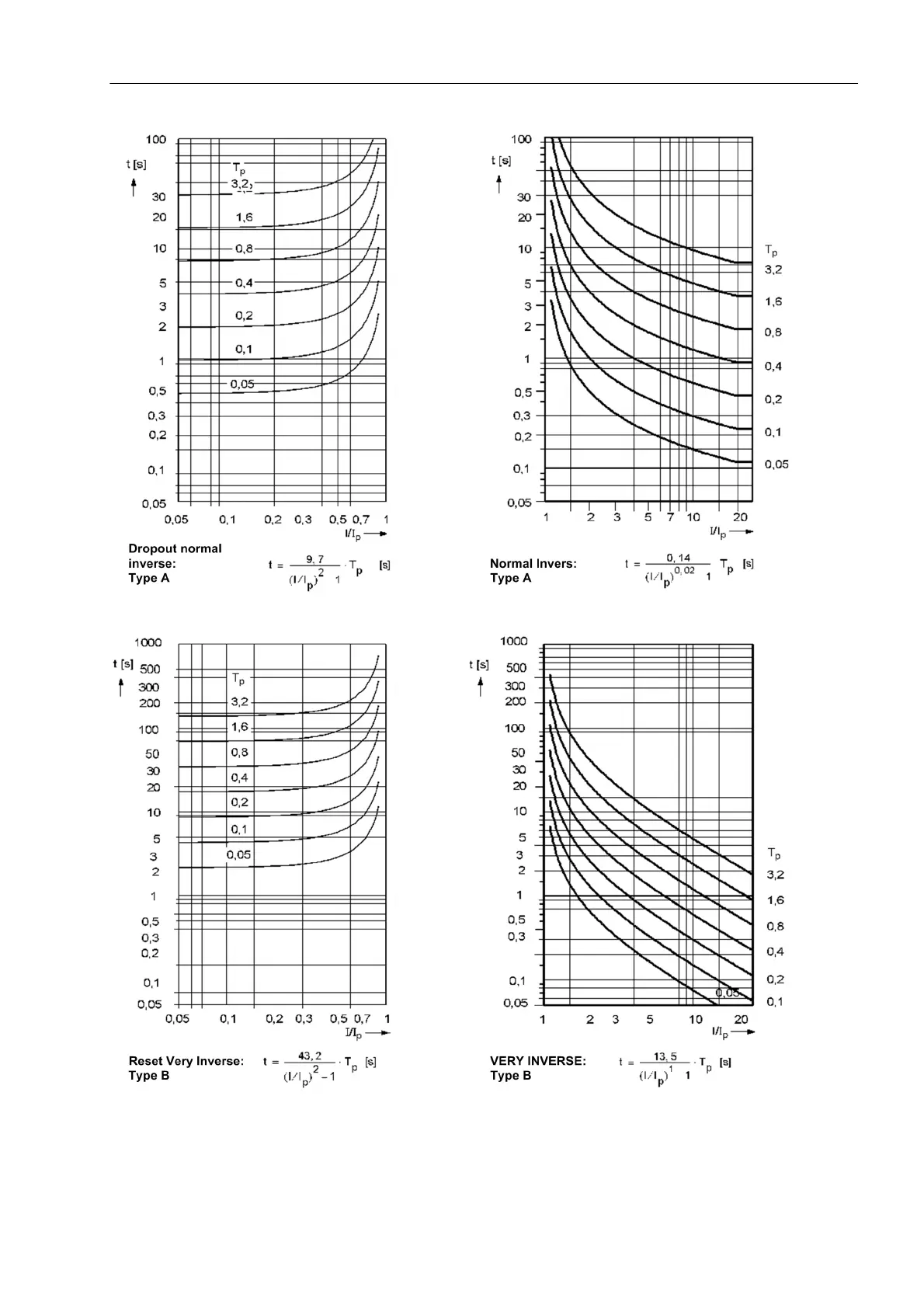

Figure 4-7 Dropout time and trip time curves of the inverse time overcurrent protection, as per IEC
