A.5 Default Settings
545
7UT613/63x Manual
C53000-G1176-C160-2
A.5.5 Default Display
For devices with a four-line display, you can scroll among the basic displays shown
below. The numerical values shown are examples. The device will display only those
values that make sense for the current application. For instance, voltages will only be
shown if the device is provided with voltage inputs and these inputs have been config-
ured; with single-phase transformers there will be no phase L2.

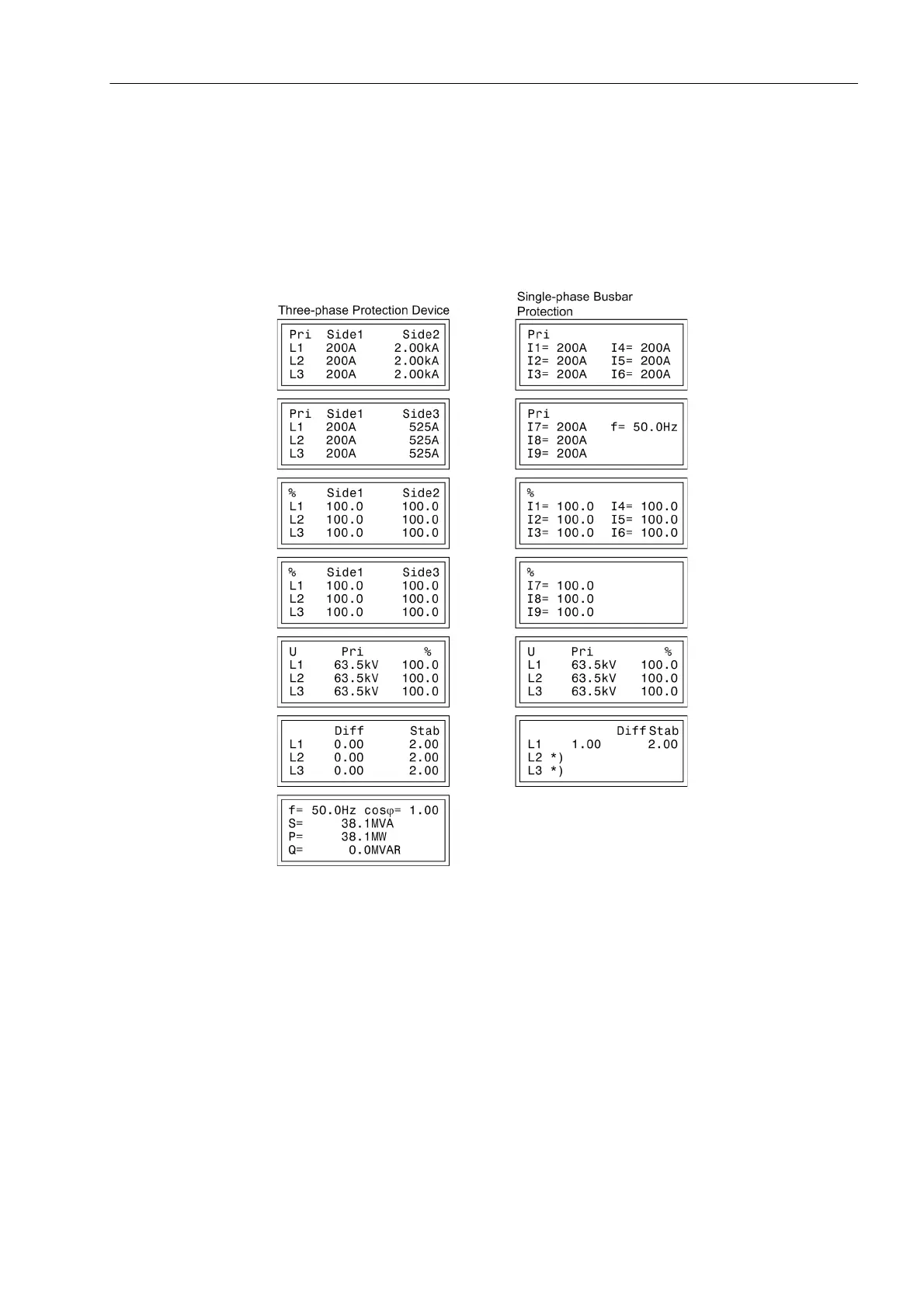

Figure A-31 Default display for 4-line display
*) depending on the phase connected (address 396 PHASE SELECTION)
