4.23 Dimensions
491
7UT613/63x Manual
C53000-G1176-C160-2
4.23 Dimensions
4.23.1 Panel Surface Mounting (Enclosure Size
1
/
2
)

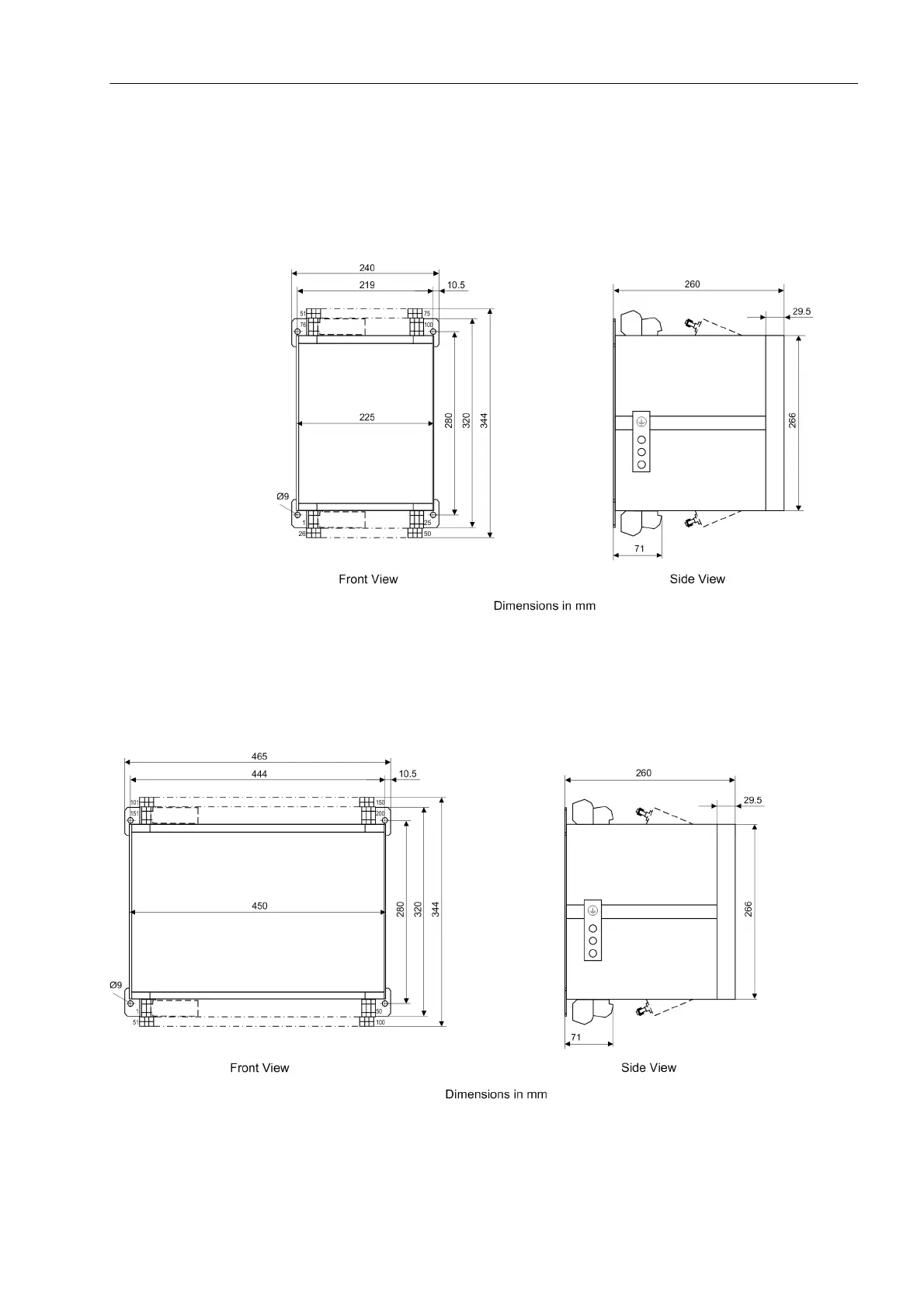

Figure 4-20 Dimensional drawing of a 7UT613 for panel flush mounting (housing size
1
/
2
)
4.23.2 Panel Surface Mounting (Enclosure Size
1
/
1
)
Figure 4-21 Dimensional drawing of a 7UT633 or 7UT635 for panel flush mounting (housing size
1
/
1
)
