A.3 Connection Examples
529
7UT613/63x Manual
C53000-G1176-C160-2

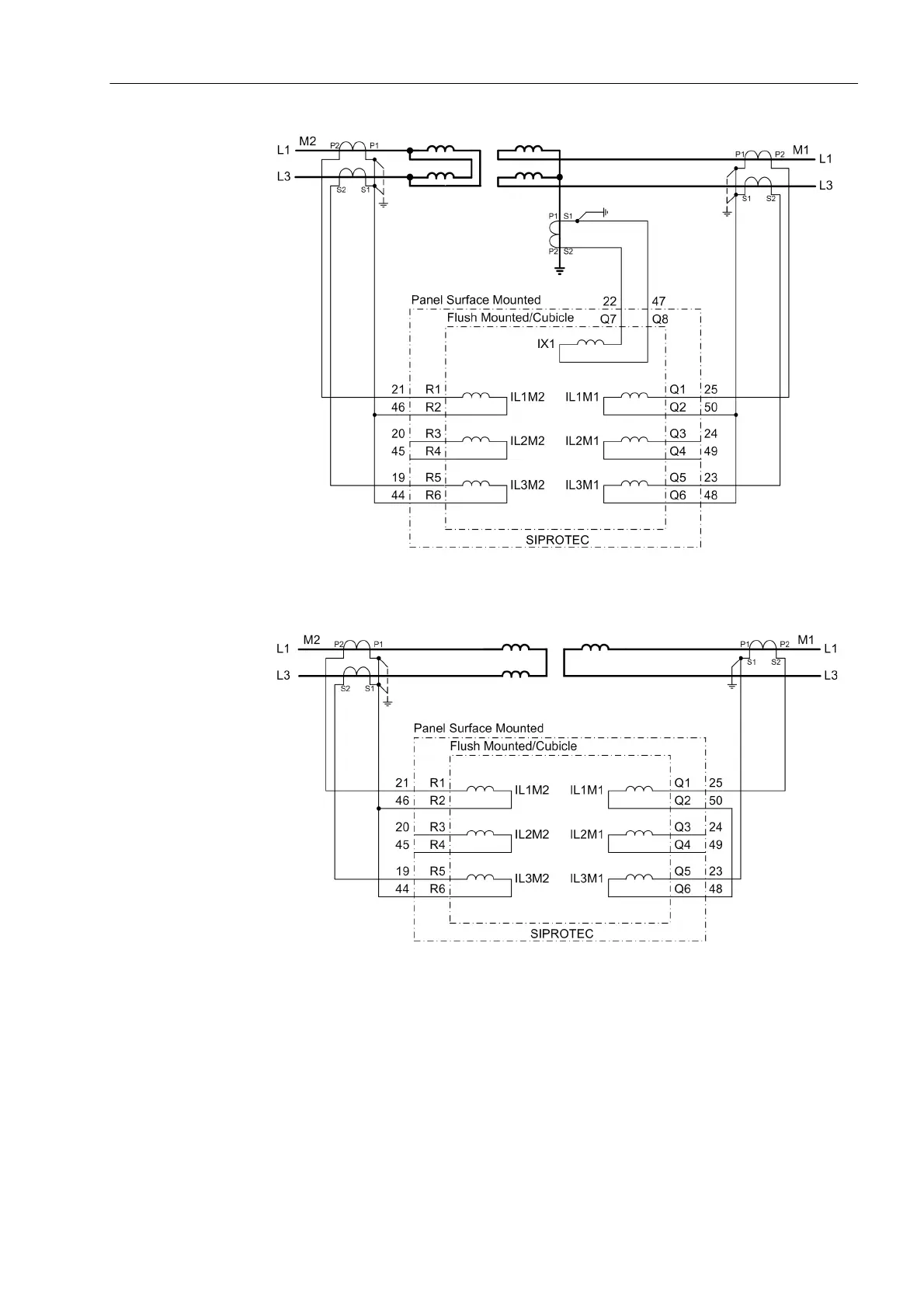

Figure A-18 Connection example 7UT613 for a single-phase power transformer with current
transformer between starpoint and earthing point
Figure A-19 Connection example 7UT613 for a single-phase power transformer with only
one current transformer (right side)
