A.3 Connection Examples
531
7UT613/63x Manual
C53000-G1176-C160-2

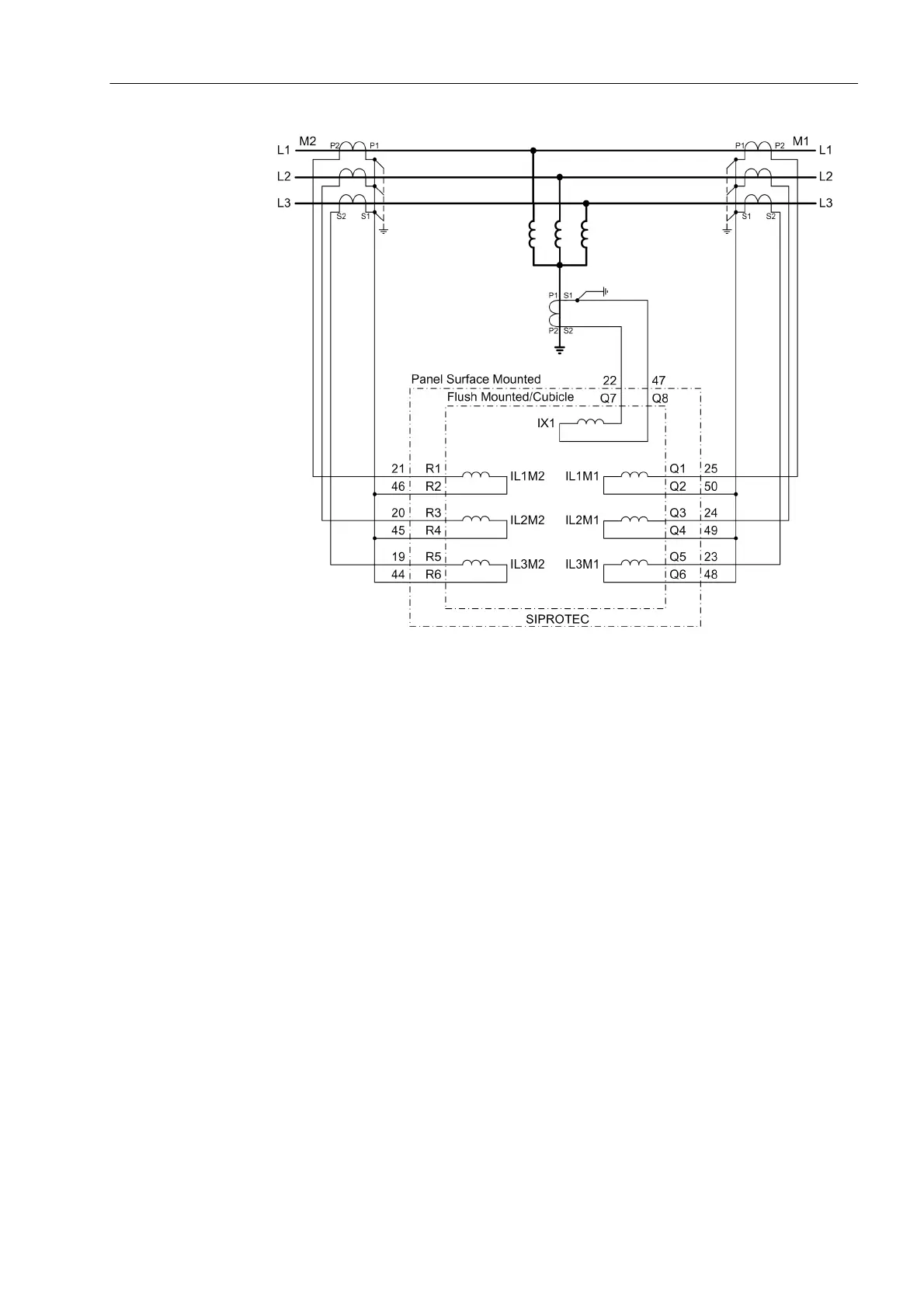

Figure A-22 Connection example 7UT613 for an earthed shunt reactor with current trans-
former between starpoint and earthing point
