Functions
2.9 Teleprotection for Earth Fault Protection (optional)
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
255

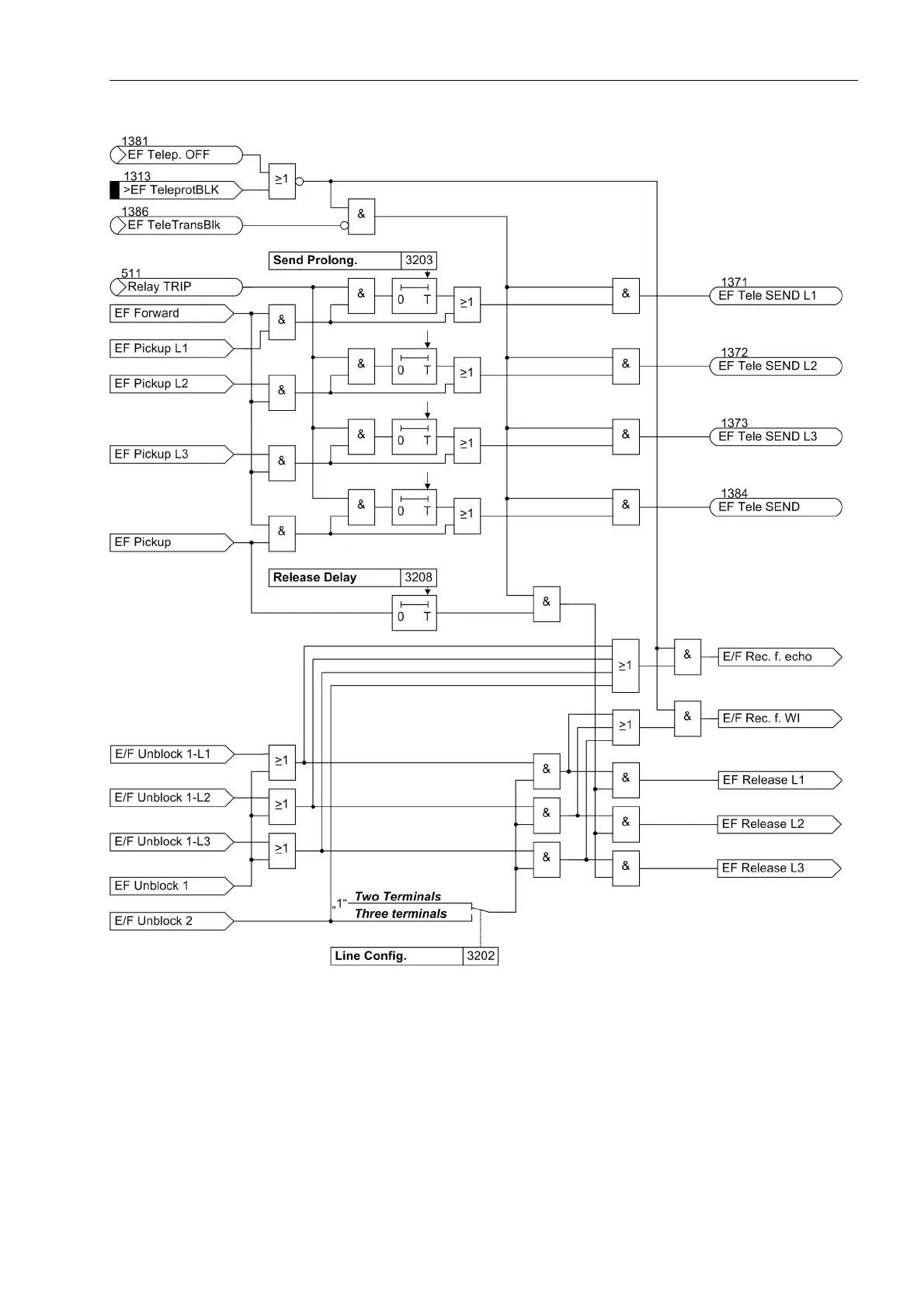

Figure 2-122 Logic diagram of the unblocking scheme (one line end)
