A.2 Terminal Assignments
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
652
A.2 Terminal Assignments
A.2.1 Panel Flush Mounting or Cubicle Mounting
7SD5***-*A/J

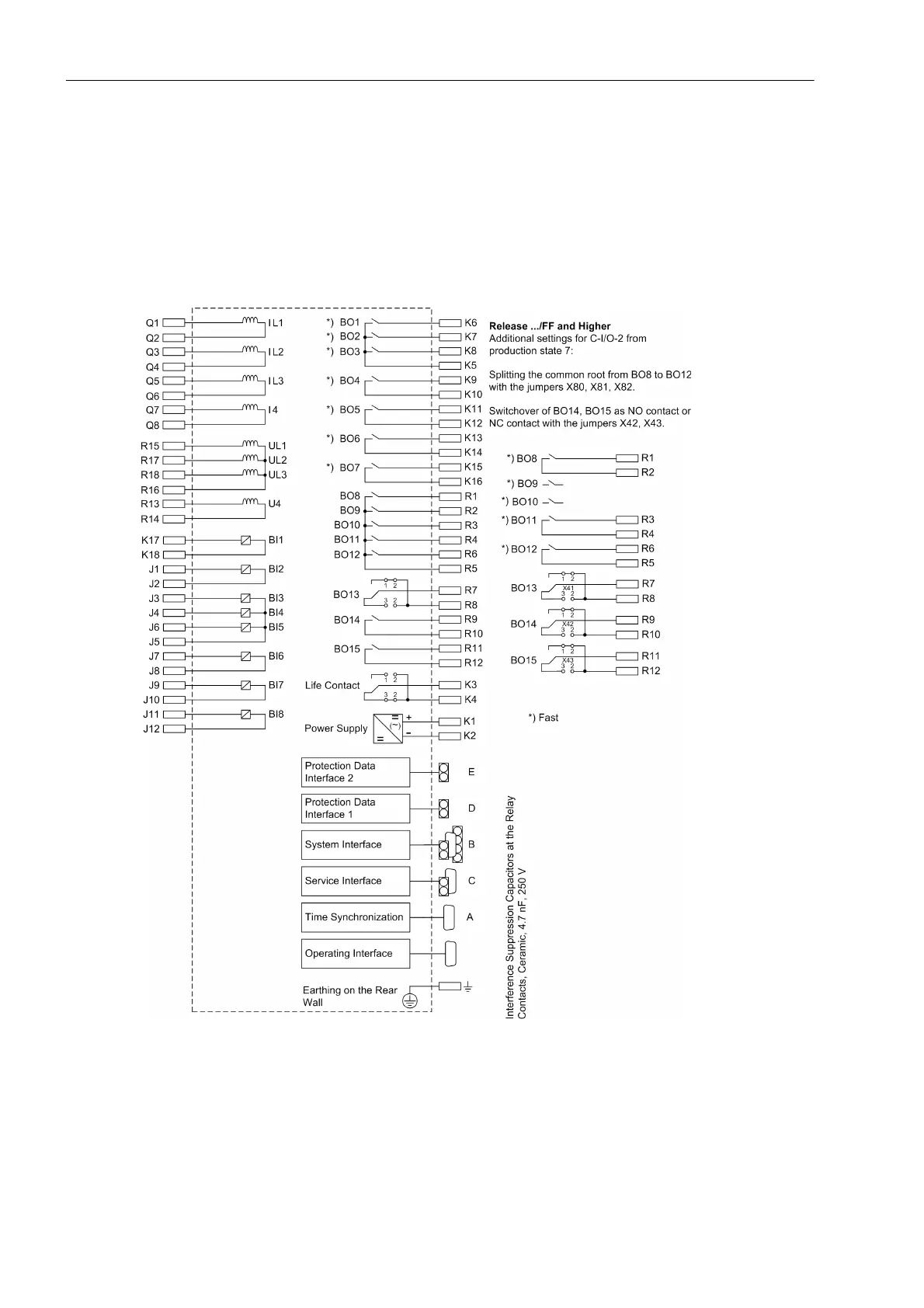

Figure A-1 General diagram 7SD5***-*A/J (panel flush mounting or cubicle mounting; size
