Functions
2.20 Frequency Protection (optional)
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
383

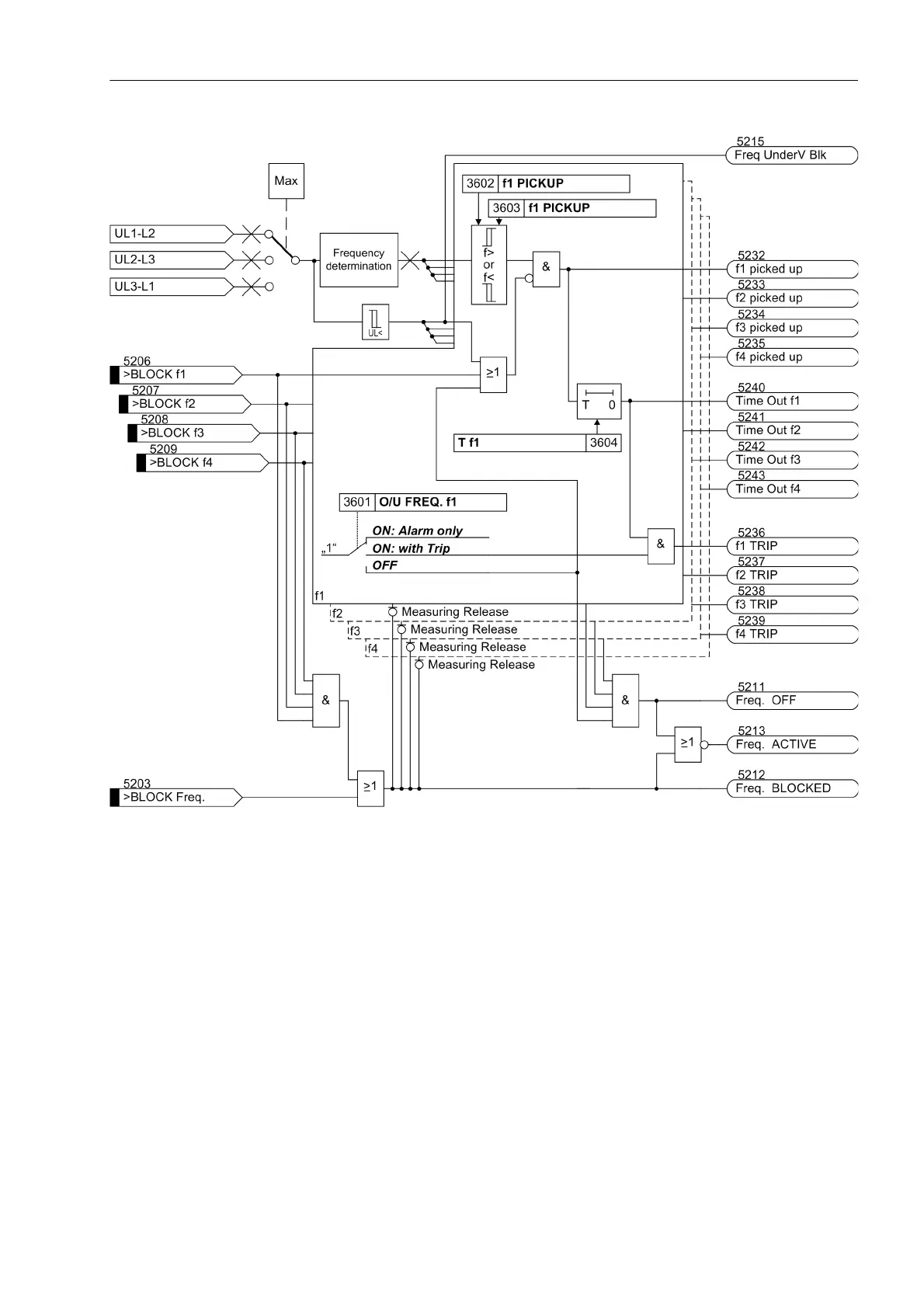

Figure 2-179 Logic diagram of the frequency protection
