Technical Data
4.23 Thermal Overload Protection
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
627

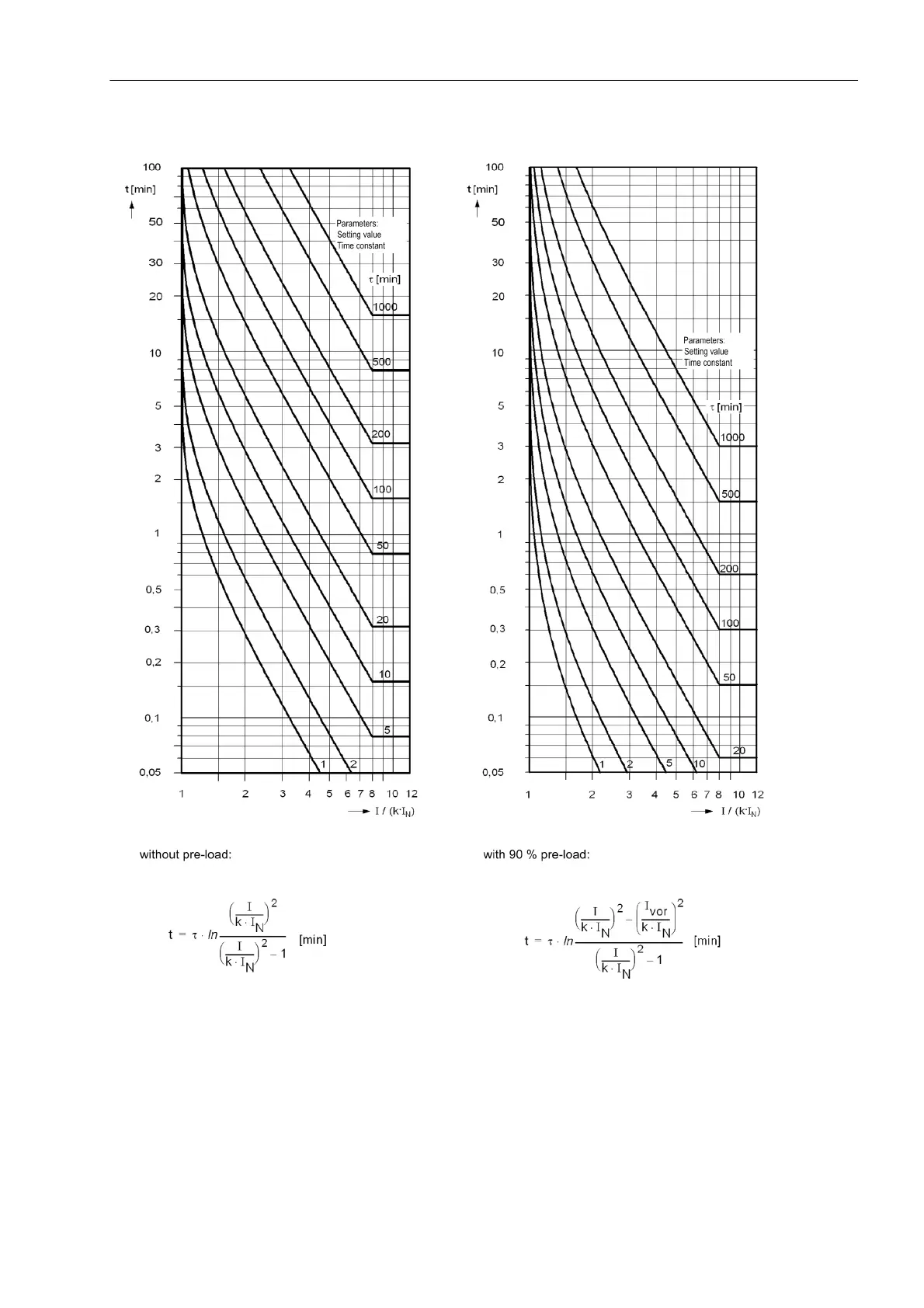

Figure 4-8 Trip time characteristics of the overload protection
