Appendix
A.2 Terminal Assignments
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
662
7SD5***-*Q

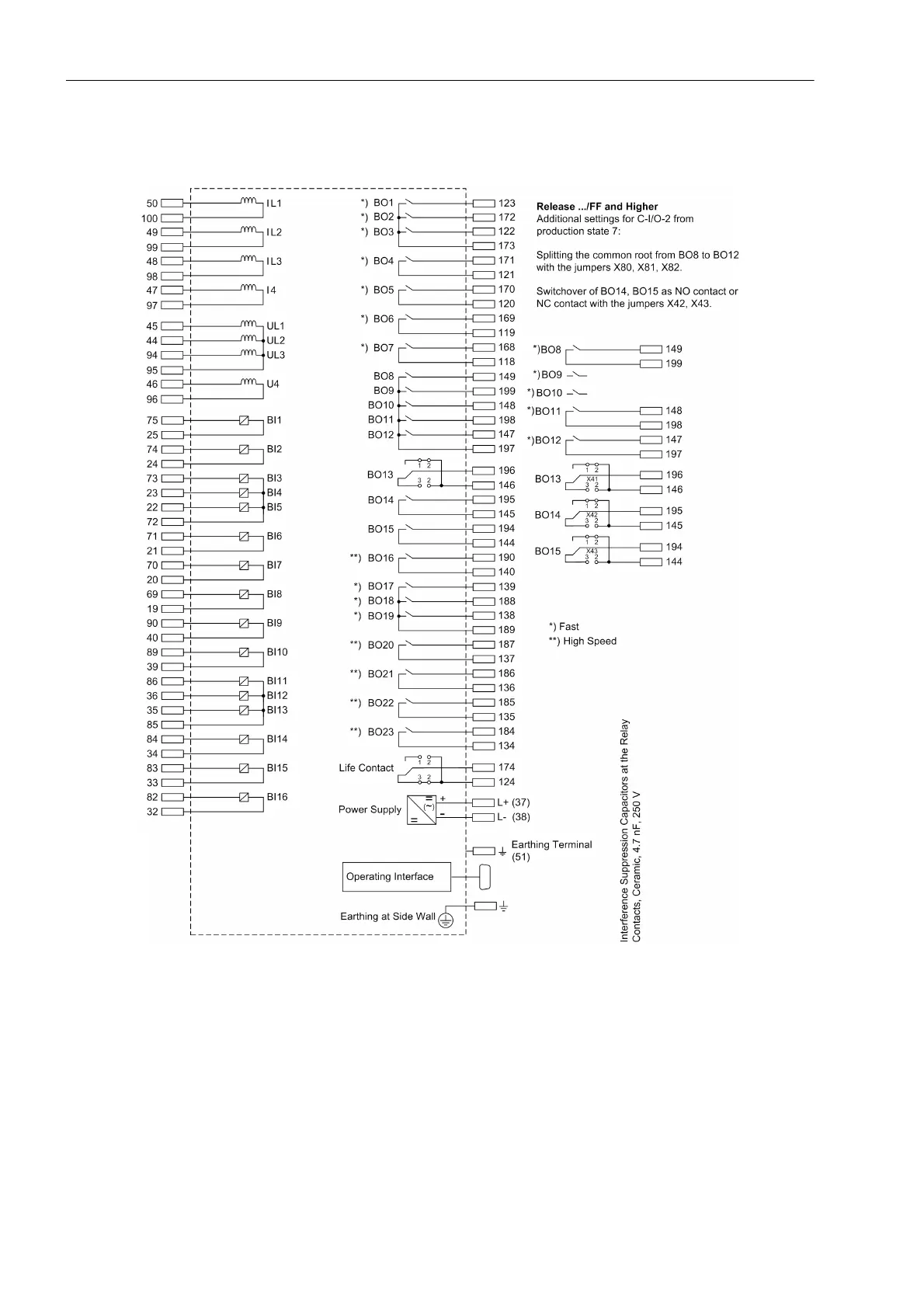

Figure A-10 General diagram 7SD5***-*Q (panel surface mounting; size
