Appendix
A.3 Connection Examples
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
668

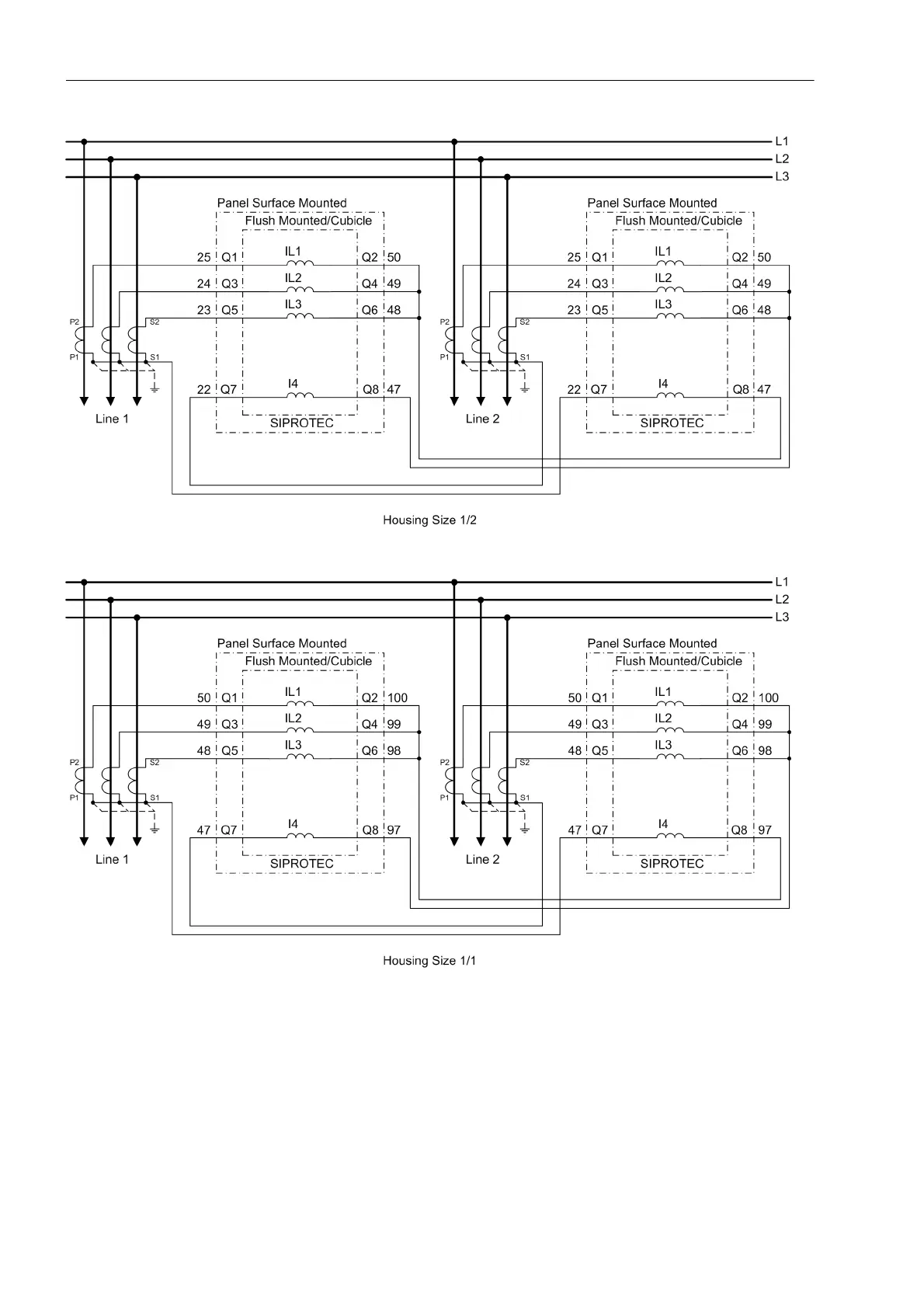

Figure
A-16
Curren
t connections to three current transformers and earth current
from the star-point connection of a
parallel line (for parallel line
compensation)
