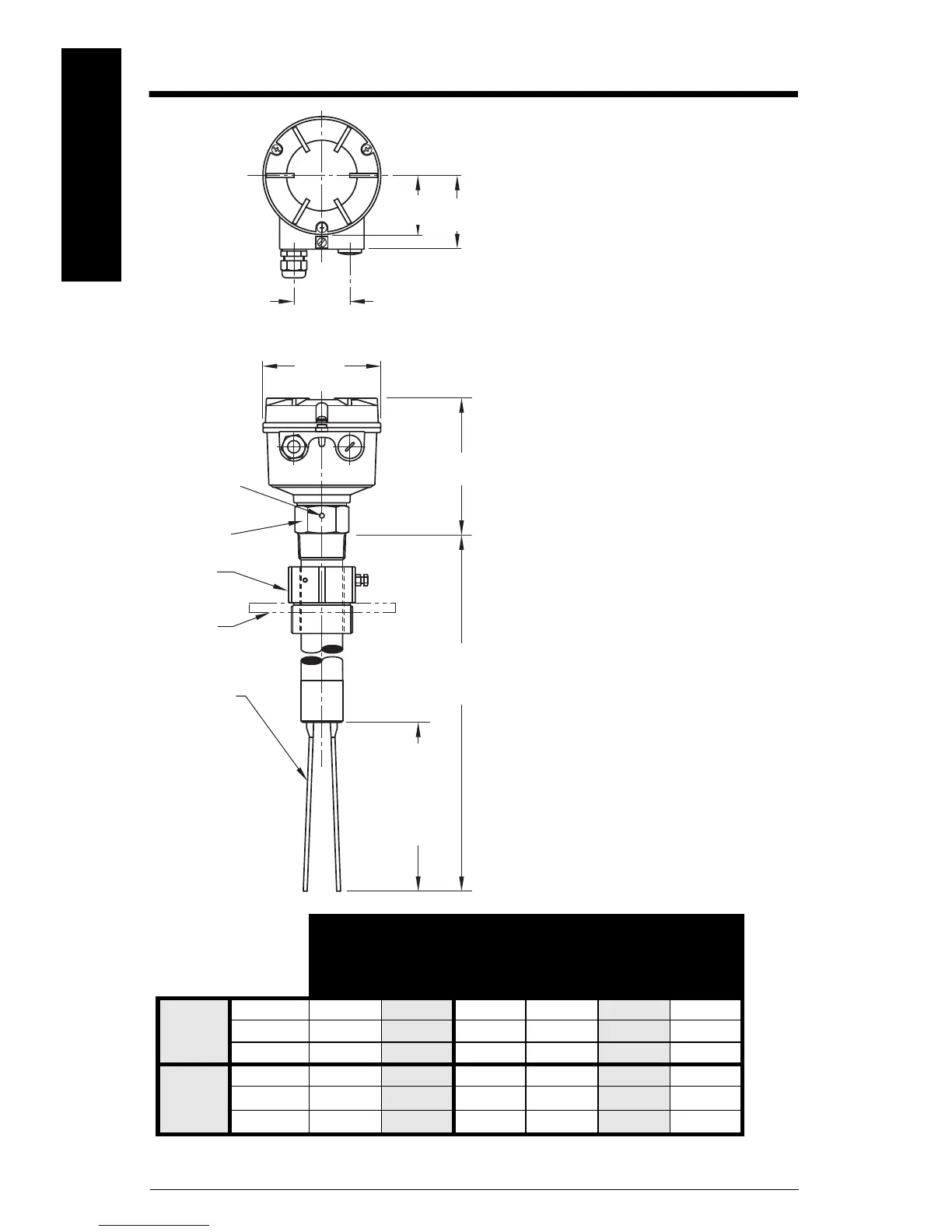

120 mm
(4.72")
150 mm
(5.91")
customer
supplied
process
flange
165 mm (6.5"): compact solids/liquids interface model
230 mm (9.0"):compact standard version
300 to 4000 mm (11.81 to 157"): customer-specified rigid
extension
170 mm (6.69"):
standard fork
195 mm (7.68"):
low density fork
100 mm (3.94"):
liquid/solid
(short) fork
60 mm
(2.36")
60 mm
(2.36")
75 mm
(2.95")
tine
orientation
marking
**A
**B
threaded
bushing [max.
temp. +80°C
(+176°F)]
optional
sliding
bushing*
*Note: The clamping screws of the sliding bushing must
be tightened to 10 Nm.
tine
Universal voltage Relay SPDT
Universal Voltage Relay DPDT
3-wire PNP
2 wire without contact
8/16 mA or 4-20 mA
(non-intrisically safe)
NAMUR IEC 60945-5-6 (Intrinsically Safe)
8/16 mA or 4-20 mA (intrinsically safe)
**A
EPL (IECEx) Da Db Da Db Ga Gb
Category (ATEX) 1D
2D 1D 2D 1G 2G
Zone 20
21 20 21 01
**B
EPL (IECEx) Da Da Da Da Ga Ga
Category (ATEX)
1D 1D 1D 1D 1G 1G
Zone
20 20 20 20 00
