Siemens SITRANS LVS100 - SITRANS LVS200 Pipe Extended Version

Page EN-26 SITRANS LVS100/200 – INSTRUCTION MANUAL 7ML19985FT63
mmmmm
English

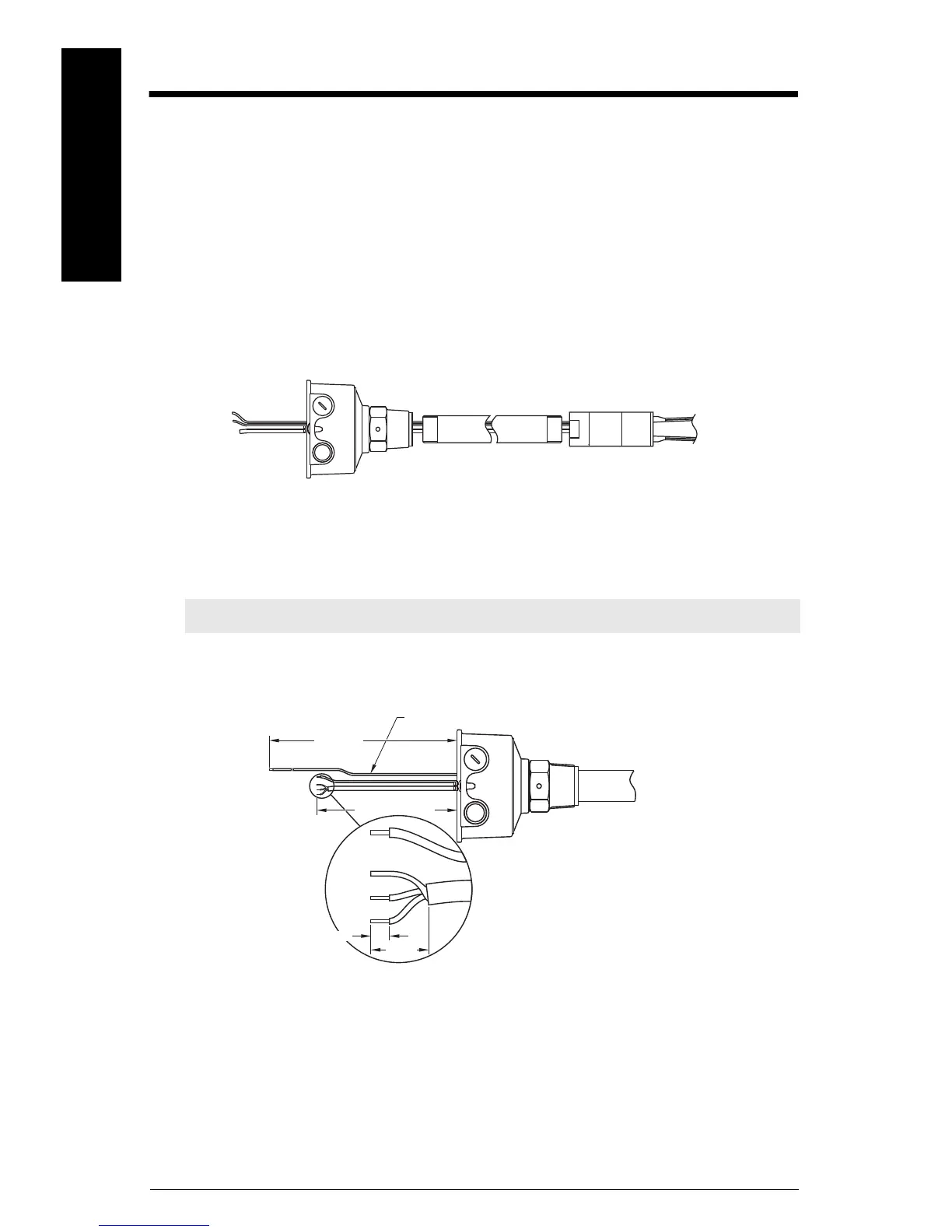

SITRANS LVS200 Pipe Extended Version
Assembly
Suggested tools:
1. Open the enclosure lid; remove electronics module.
2. Lead the sensor cable through the customer supplied 1" tube and enclosure.
3. Assemble the fork assembly, the pipe extension, and the enclosure using the 36 mm
open end wrench. Seal the pipe threads with an appropriate sealant.
4. Line up the fork and the tine orientation marking as shown in dimension drawing on
page 16. (The tine orientation marking on the process connection is to identify the
vertical orientation of the fork.)
5. Shorten sensor cable to a free length of 150 mm (5.9").
6. Shorten earth cable to a free length of 220 mm (8.7").
7. Prepare sensor cable as shown above, stripping a maximum of 8 mm from each
wire.
• medium Phillips or 6 to 8 mm (¼”) flat screwdriver • terminal crimper
• 3 mm (1/8”) flat screwdriver • 36 mm open end wrench
• wire cutters • pipe wrench
•wire strippers
Note: Do not turn fork assembly. Do not bend the fork during assembly.
enclosure
customer supplied
pipe extension
fork assembly
earth cable (green/yellow)
220 mm
(8.7")
150 mm (5.9")
8 mm max.
18 mm
