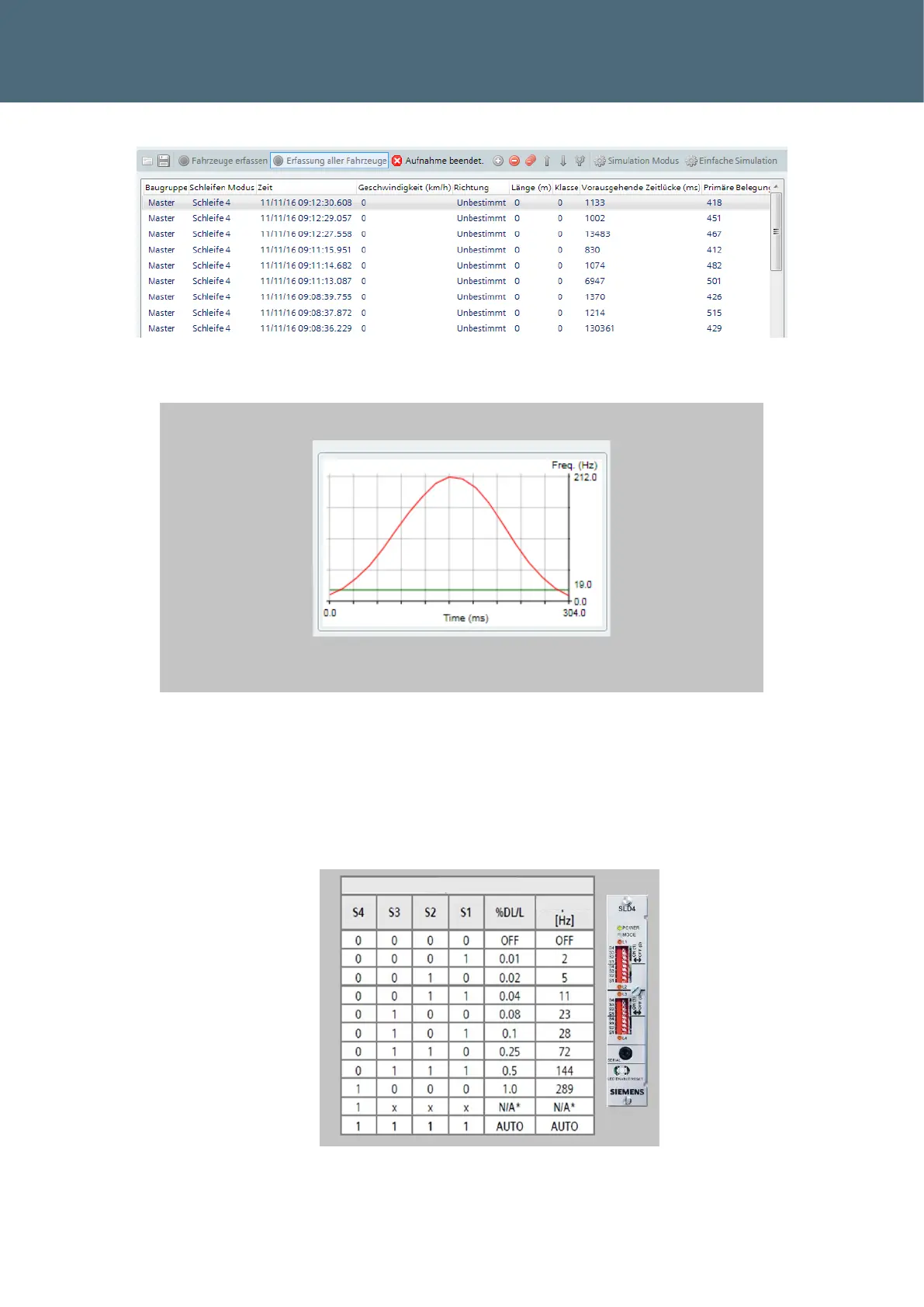

Figure 7 : Vehicle Records (German language settings)
Figure 8 : Vehicle Profile
7. Note the frequency value of the trigger threshold in AUTO Sensitivity Mode. In Figure
8 the value would be 19Hz.
8. Use the following table, which shows what sensitivity in %DL/L of the trigger thresh-
old is set based on captured results.
