the criteria of more than one bin, the classification value becomes the binary bitwise combina-
tion of the class ID’s (reference handbook 667/HB/45200/000 for details).
The mapped classification feature provides great flexibility in creating vehicle classes, but this
feature is quite complex. The two examples below, sections 7.3.1.1 and 7.3.1.2, illustrate how
this feature can be used. Contact Siemens support if additional help is required in setting up
complex classification mappings

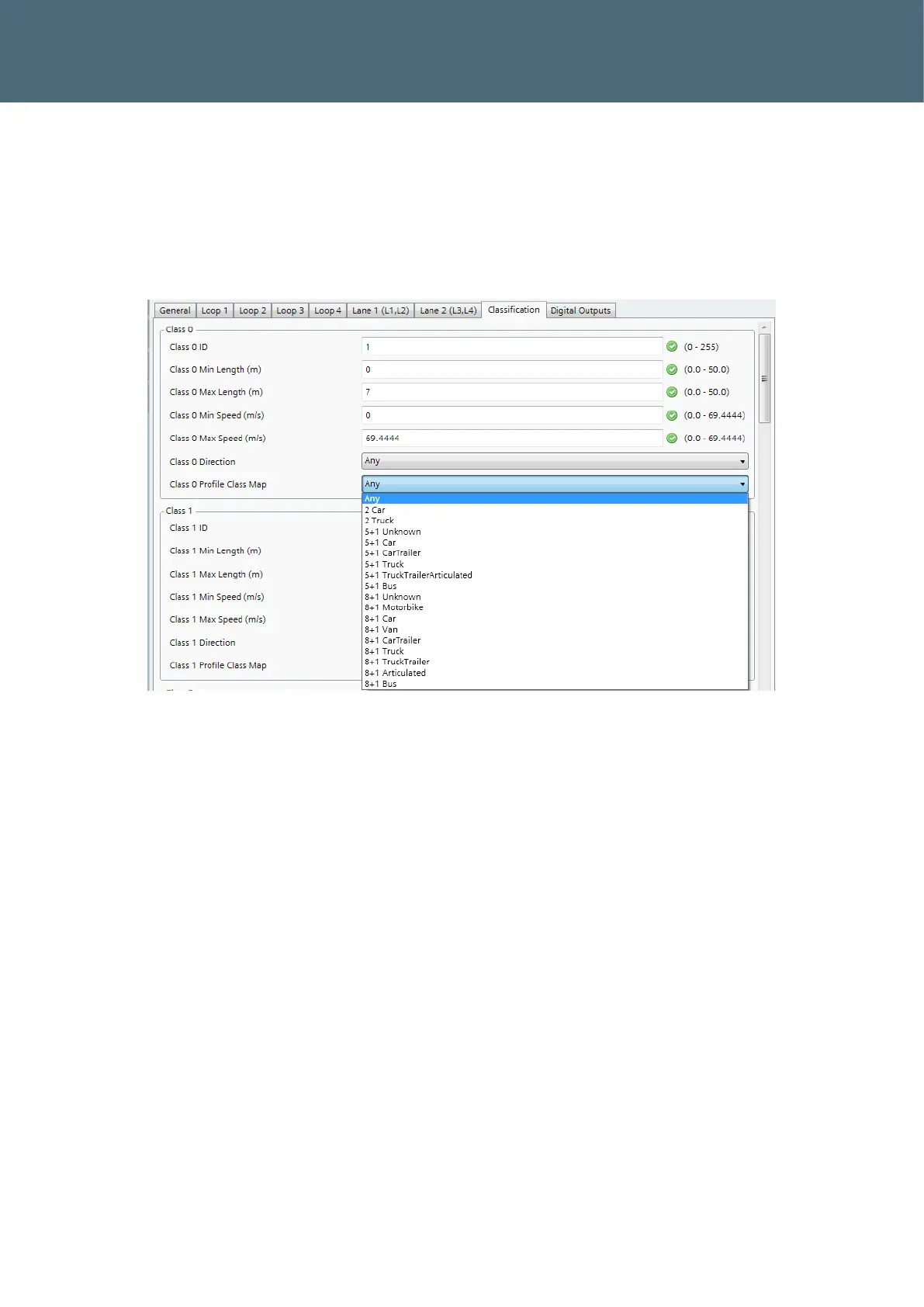

Figure 18 : Classification Bin Configuration
