Siemens SOMATOM Scope

3D postprocessing
syngo 3D performs 3D editing and rendering of medical images on
the
3D task card. The result of a tomographic examination is a
sequence of images through a solid volume. By combining 2D
images, it is possible to obtain a 3D display of the ROI.
Loading images

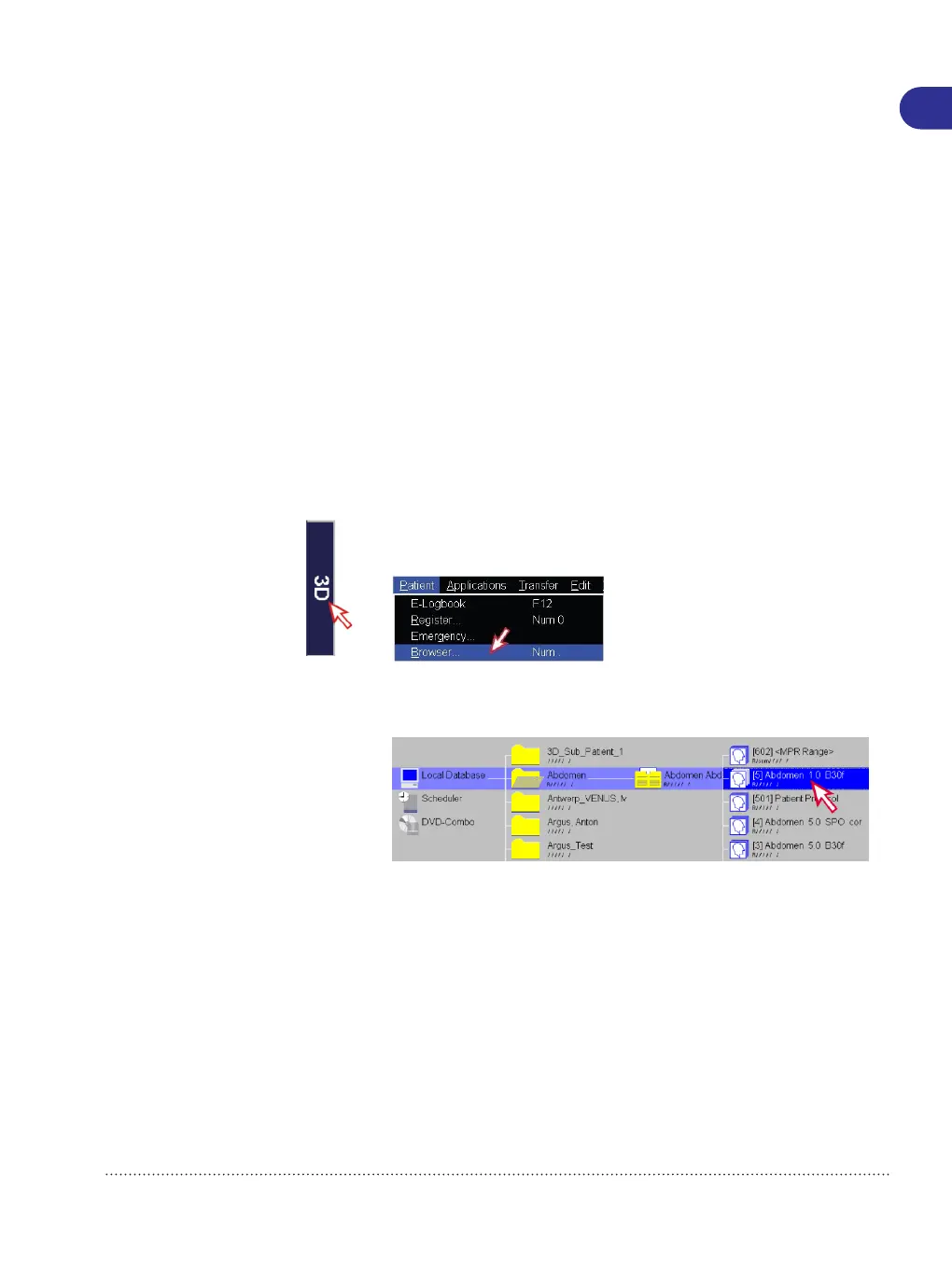

1 Click the 3D task card and choose Patient > Browser from the
main menu.
2 In the Patient Browser, double-click a series of images to load
them into the 3D task card.
The images are displayed as multiplanar reconstructions (MPR)
on the 3D task card:
7
7.1
3D postprocessing 7
SOMATOM Scope | syngo CT VC50
Print No. HC-C2-015-G.626.08.01.02
61
