Siemens SQM5 Series Technical Instructions

SQM5… Reversing Actuators Technical Instructions
155-517P25
Rev. 1, July, 2000
Siemens Building Technologies, Inc. Page 27
11/16 
(18)
6-7/16 
(164)
4 X 1/4 
(7)
4 X 1/4 
(7)
1/8 
(3)
C
L
AGA57.3
EA0519R1
4-1/16 
(103.3)
4-7/16 
(113)
2-1/8 
(80)
4-7/8 
(123.8)
9/16 
(14.5)

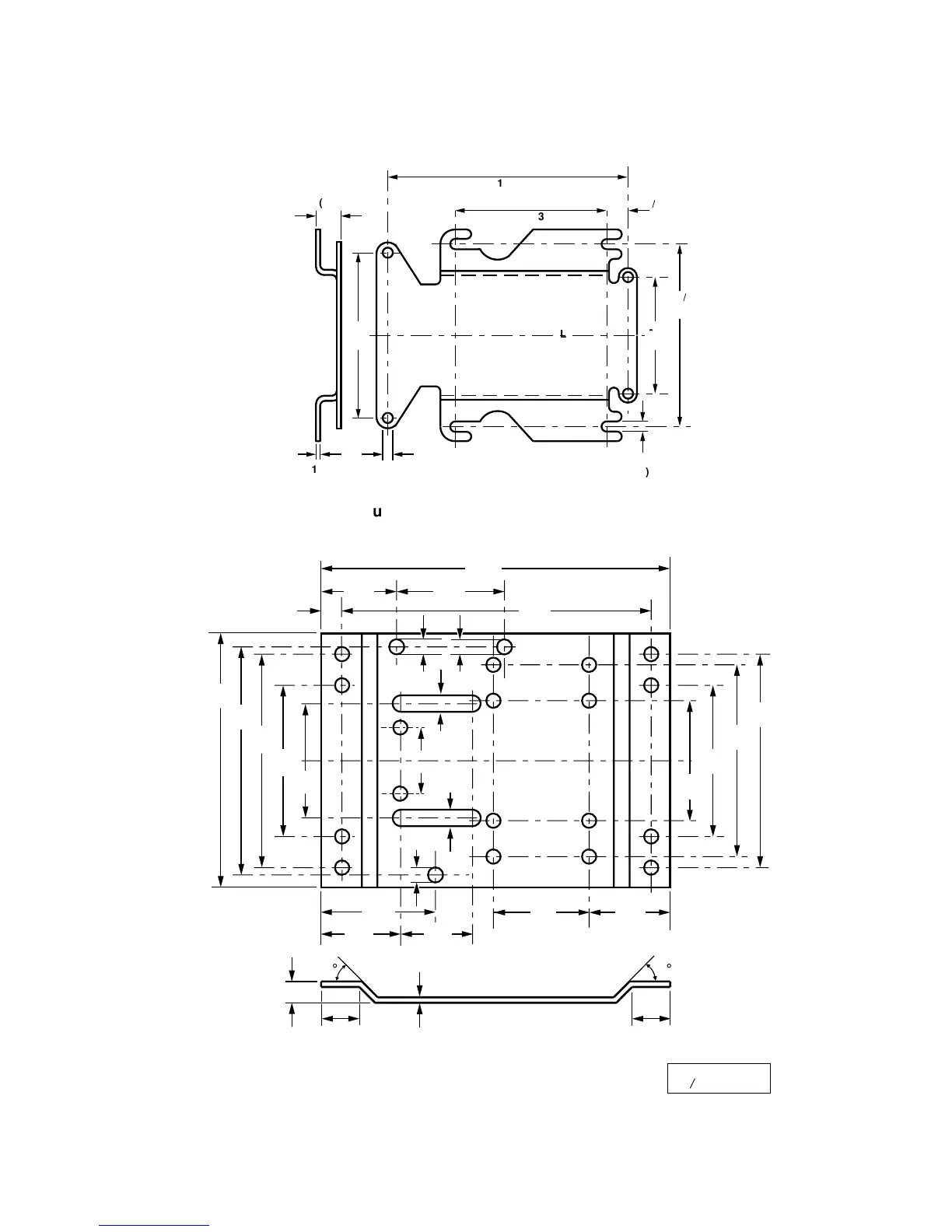

Figure 29. Mounting Bracket AGA57.3
L
C
7/16
(11)
13/16
(20.3)
13/16
(20.3)
1/8
(3)
5/16
(7.94)
5/16
(7.94)
1/2
(12.5)
4545
All non-sized holes
O 5/16 (7.62)
AGA57.4
3-1/8
(80)
4-7/16
(113)
5-5/16
(135)
2-3/8
(60.4)
4-3/4
(120.65)
5/16
(7.94)
5/16
(8.73)
5/16
(8.73)
7-5/16
(185)
2-1/4
(57.15)
1-9/16
(40)
6-7/16
(164)
2-3/8
(60.64)
1-1/2
(38.1)
1-5/8
(42)
2
(50.8)
1-11/16
(43)
EA0520R2
3-1/8
(80)
2-1/2
(63.5)
4
(101.5)
4-7/16
(113)
1-3/8
(35)
Figure 30. AGA57.4 Mounting Bracket.
