TX-I/O Modules

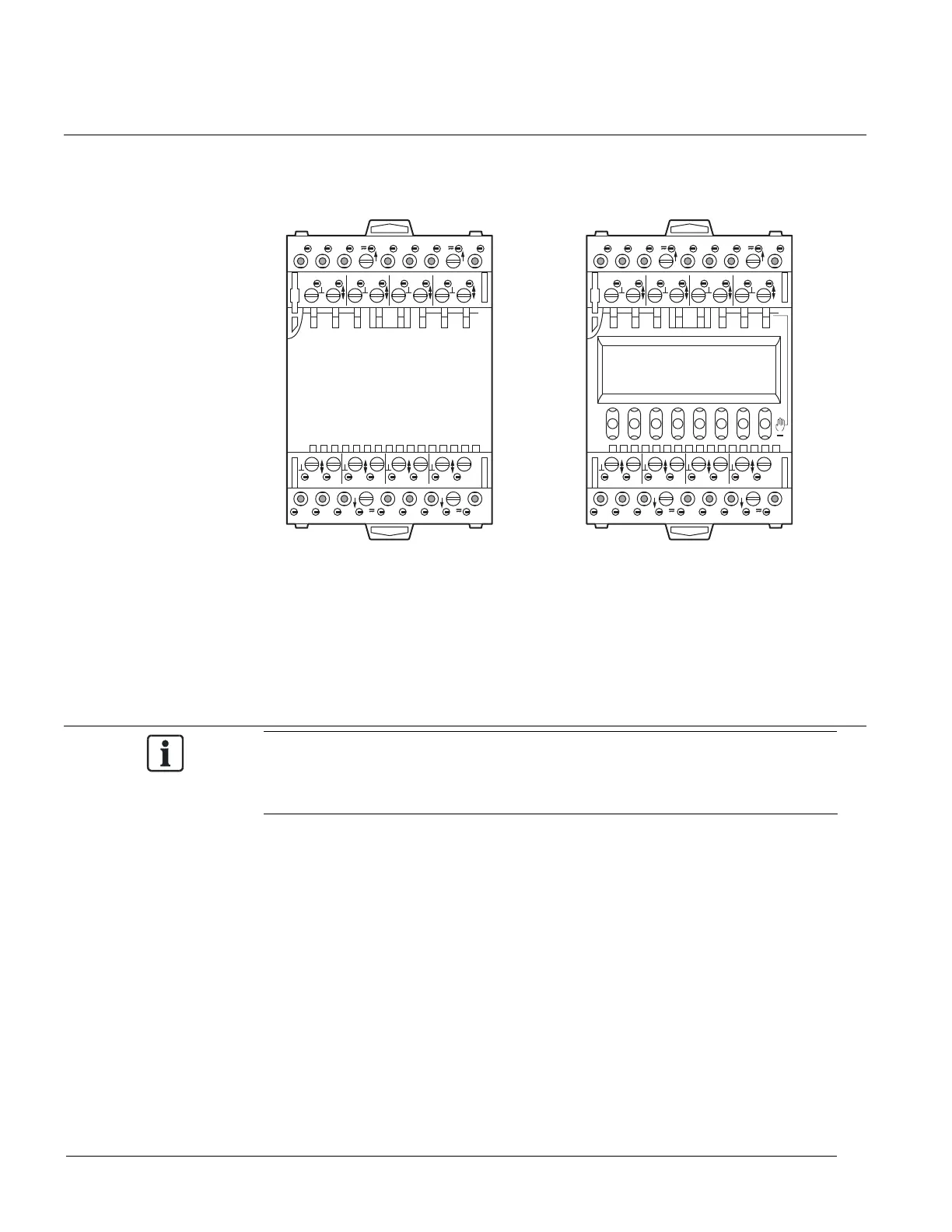

Universal I/O Modules (TXM1.8U and TXM1.8U-ML)
The TXM1.8U and TXM1.8U-ML universal I/O modules provide 8 points, which can be
individually software configured as digital input, analog input, or analog output to best
meet the specific application needs.
TXIO0047R1
TXM1.8U
2
7
VV
VV
15
19 21 25 2723 29 31 33
(1)
(5) (6) (7) (8)
(1) (2) (3) (4) (5) (6) (7) (8)
468
(2)
10 12
(3)
14
24 32
16
(4)
TXIO0023R1
TXM1.8U-ML
2
7
VV
VV
15
19 21 25 2723 29 31 33
(1)
(5) (6) (7) (8)
(1) (2) (3) (4) (5) (6) (7) (8)
468
(2)
10 12
(3)
14
24 32
16
(4)
+
All Universal I/O modules provide:
 AC supply voltage for peripheral devices, such as valves and actuators.
 Green LED status per I/O point that varies in intensity according to the voltage and
current (directly proportional).
Supply Terminal Connections
NOTE:
The neutral of analog inputs and outputs must always be connected to the
terminal associated with that I/O input.
 All supply terminals are connected in the I/O module, not in the terminal base.
 The neutral of a digital input (on Digital Input, Universal and Super Universal
modules) can be connected to any neutral terminal on the same module. Several
digital inputs can also share a neutral terminal on the same module.
AC/DC Output (Field Supply)
The following information applies to terminals 7, 15, 24, and 32.
Voltage AC/DC 12 to 24 V
Admissable current per module Max. 4 A (total for all four terminals)
Fuse 4A, in TX-I/O Power Supply or
Bus Connection Module
20
Siemens Industry, Inc. TALON TX-I/O Modules and Island Bus Technical Reference
588-587 CONFIDENTIAL: For internal use only 4/6/2010
