19

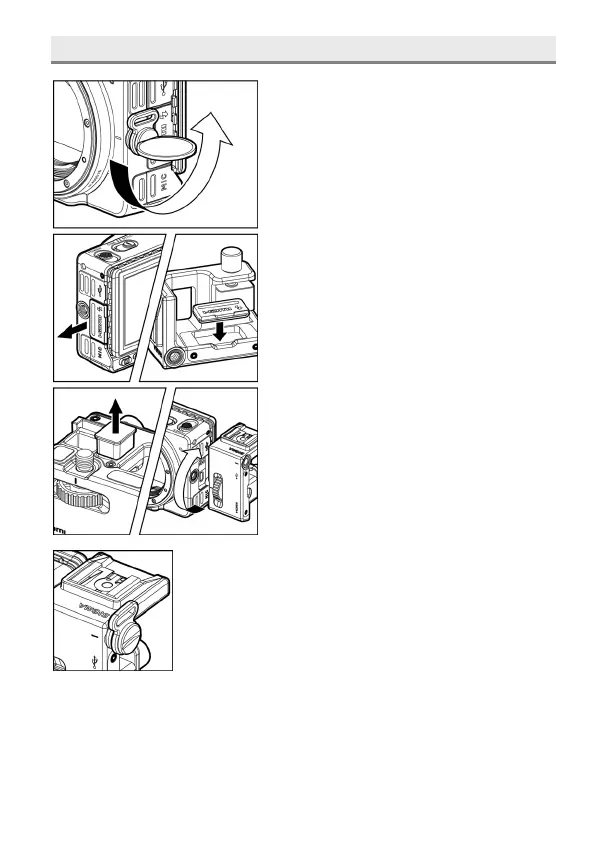

ABOUT HOT SHOE UNIT HU-11
When using the flash, attach the hot shoe
unit HU-11, which is supplied with this
product, to the camera.
1
If the strap holder is attached to the left
side of the camera, remove it using a coin
or similar object.
2
Remove the contact cover and place it in
the contact cover holder on HU-11.
3
Remove the contact protection cap on
HU-11 and attach HU-11 securely to the
camera by turning the locking ring.
Use the EF-630 SIGMA Electronic Flash
(FOR SIGMA) or EF-140S SA-STTL
(P.147) with your camera.
The strap holders removed from the camera can be
attached to the strap holder sockets on HU-11.
WARNING
Before taking a picture, make sure the strap holders are firmly screwed
into the sockets. If either or both of the strap holders come loose, the
camera may fall during use. If either of them do come loose, firmly tighten
it using a coin or similar object.
