SIGMATEK C-DIAS Technical Data

C-DIAS ANALOG INPUT MODULE CAI 042

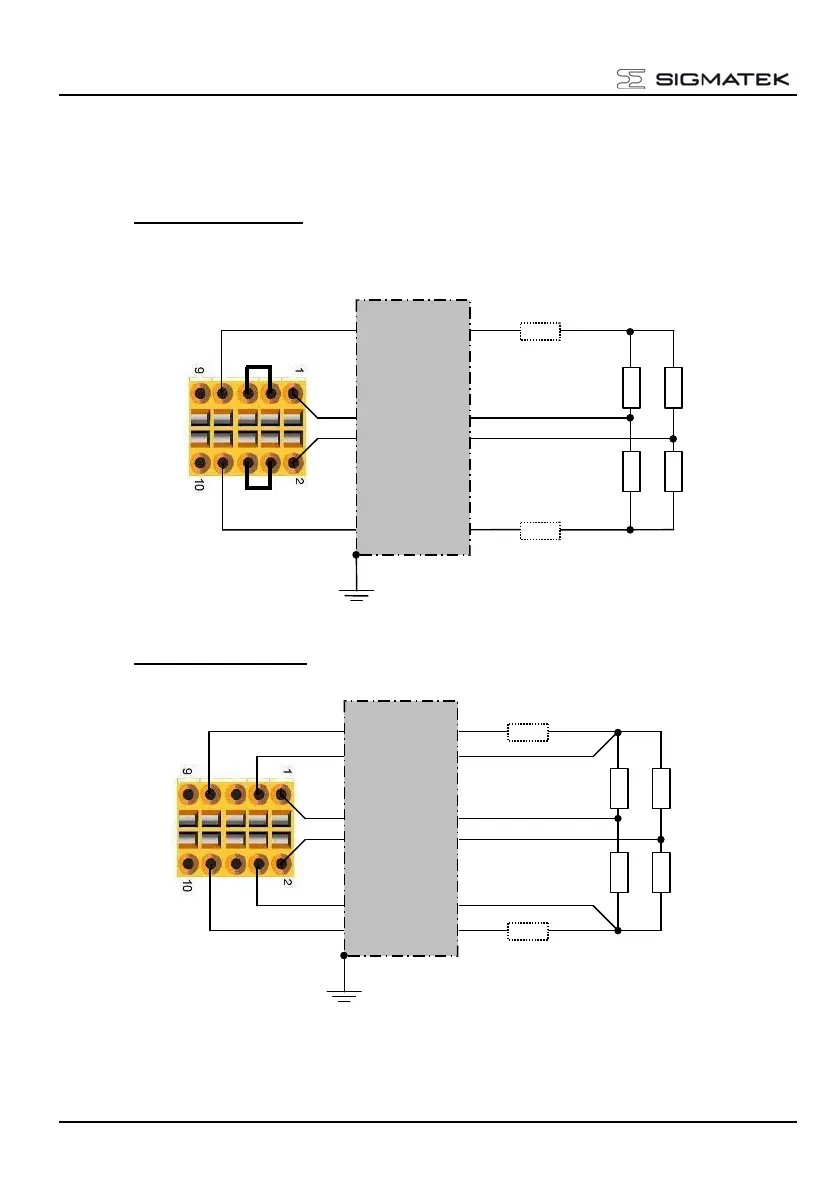

Wiring Variations
There are two connection types available for measuring with the resistive wire strain:
• 4-wire measurement:
The advantage of this variation is that a four-pole connection
cable can be used for the DMS; however, the voltage drop on the circuit for the
bridge supply voltage cannot be compensated.
R
Line
Measuring
Bridge
R
Line
Shielding
Weidmüller
Plug
Jumper
• 6-wire measurement:
This method has the advantage of voltage compensation
through direct measurement of the bridge supply voltage on the DMS.
DMS-Measuring
Bridge
R
Line
R
Line
Shielding
Weidmüller
Plug
Page 10 02.08.2011
