C-DIAS ANALOG INPUT MODULE CAI 042
Wiring Guidelines
General
The 0V connection for the voltage supply must be wired to the 0V collection point over the
shortest route possible.
Wiring and Cable Shielding
The analog signals received by the module are very small in comparison to the digital
signals. To ensure error-free operation, a careful wiring method should be followed.
The analog connection lines must be as short as possible and avoid parallel wiring with
digital signal lines.

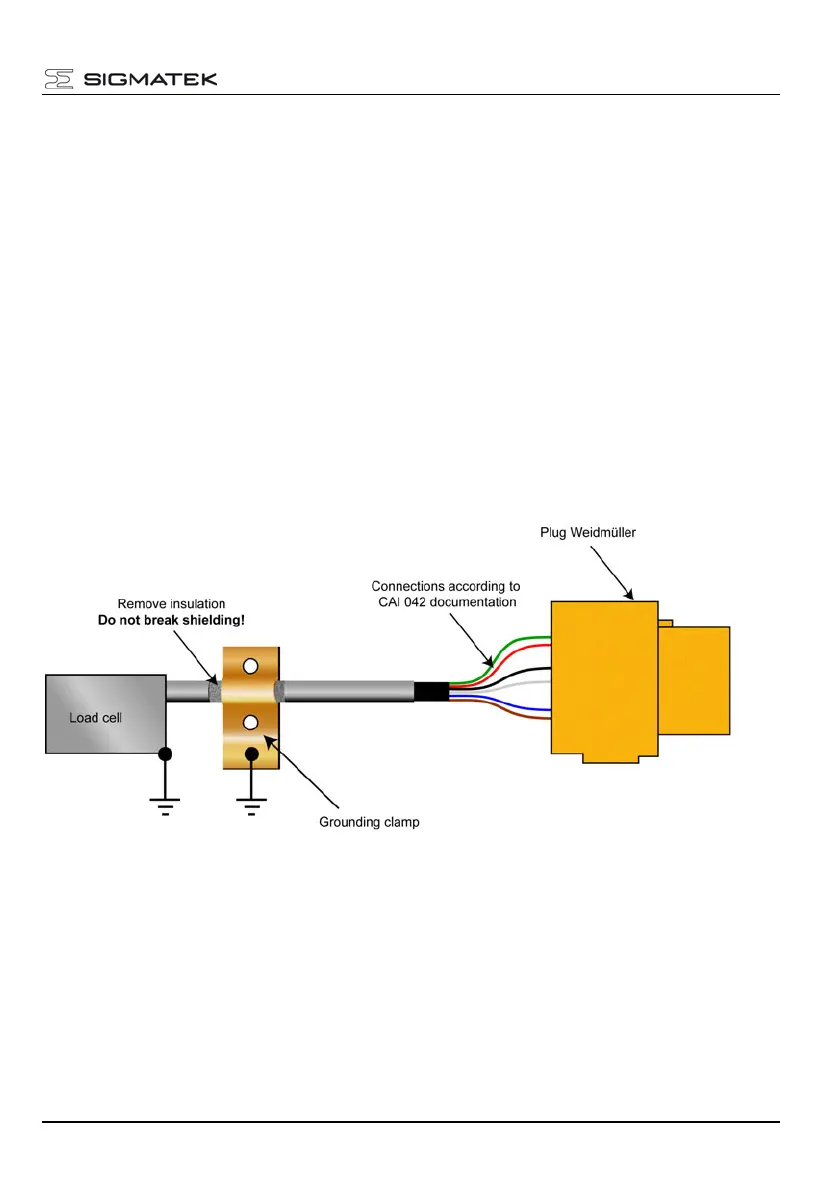

The signal lines should be shielded or at the very least, twisted (see below).
02.08.2011 Page 9
