C-DIAS ANALOG INPUT MODULE CAI 042

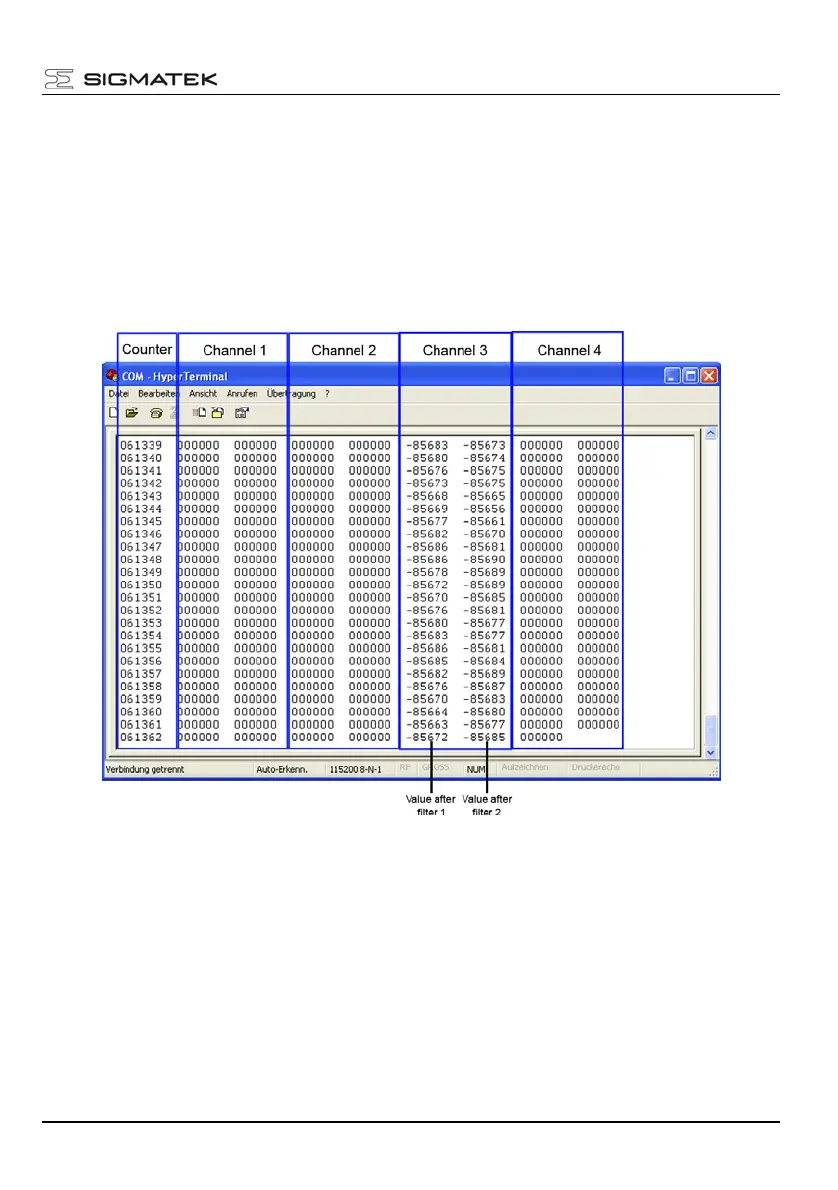

Analysis of the serial interface with Hyper terminal
Settings:
Baud rate: 115,2k
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
Counter: Shows how often measuring values are written to the serial
interface. The measuring values are updated in about 13ms
intervals. After each reset the counter reading is reset.
Filter 1: This value corresponds to the filtered measurement value of the
voltage on the resistor measuring bridge with 18-bit resolution.
Filter frequency: f
g
= f
Samp
/ 96
02.08.2011 Page 11
