SIGMATEK C-DIAS Technical Data

C-DIAS ANALOG INPUT MODULE CAI 042

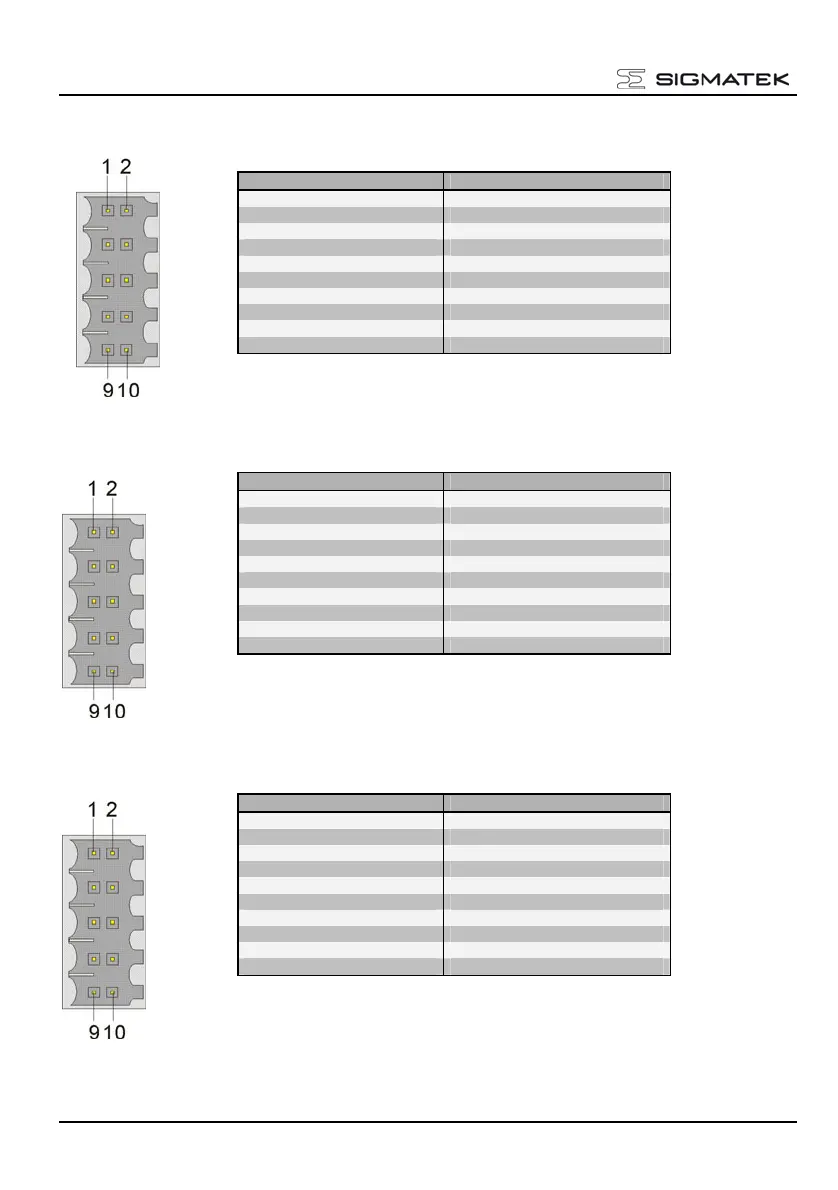

X1: Measurement bridge 1
Pin Function
1 Signal input 1-
2 Signal input 1+
3 Reference Input 1-
4 Reference Input 1+
5 Reference Output 1- (GND)
6 Reference Output 1+
7 Reference Output 1- (GND)
8 Reference Output 1+
9 Earth connection 1 (shield)
10 Earth connection 1 (Shield)
Page 6 02.08.2011
X2: Measurement bridge 2
Pin Function
1 Signal input 2-
2 Signal input 2+
3 Reference Input 2-
4 Reference Input 2+
5 Reference Output 2- (GND)
6 Reference Output 2+
7 Reference Output 2- (GND)
8 Reference Output 2+
9 Earth connection 2 (Shield)
10 Earth connection 2 (Shield)
X3: Measurement bridge 3
Pin Function
1 Signal input 3-
2 Signal input 3+
3 Reference Input 3-
4 Reference Input 3+
5 Reference Output 3- (GND)
6 Reference Output 3+
7 Reference Output 3- (GND)
8 Reference Output 3+
9 Earth connection 3 (Shield)
10 Earth connection 3 (Shield)
