10 BEFORE INSTALLATION
• Trimmed units are designed to be customized with decorative panels. Field-installed 3/4" (19 mm)
custom door panels are required.
• For Custom Panels: Use templates provided with units to pre-drill holes for mounting panel brackets
(provided with unit). Adjustment screws and instructions are also provided with units.
• The maximum total weight for custom panels for the 48" French Door model is 122 lbs (55 kg). For
maximum weights for each panel, see the spec sheet.
• 4" (102 mm) will be visible on the interior sides of the cutout. It is recommended that the interior of the
enclosure be finished to match the exterior. For retrofit/replacement installations, the optional frame kit
may be used.
• If using custom panels, a custom toe kick is required. The bottom of the case is unfinished.
• The door handles are not included in the units. Custom handles are required for installation. Brushed
aluminum handles are available as optional accessories.

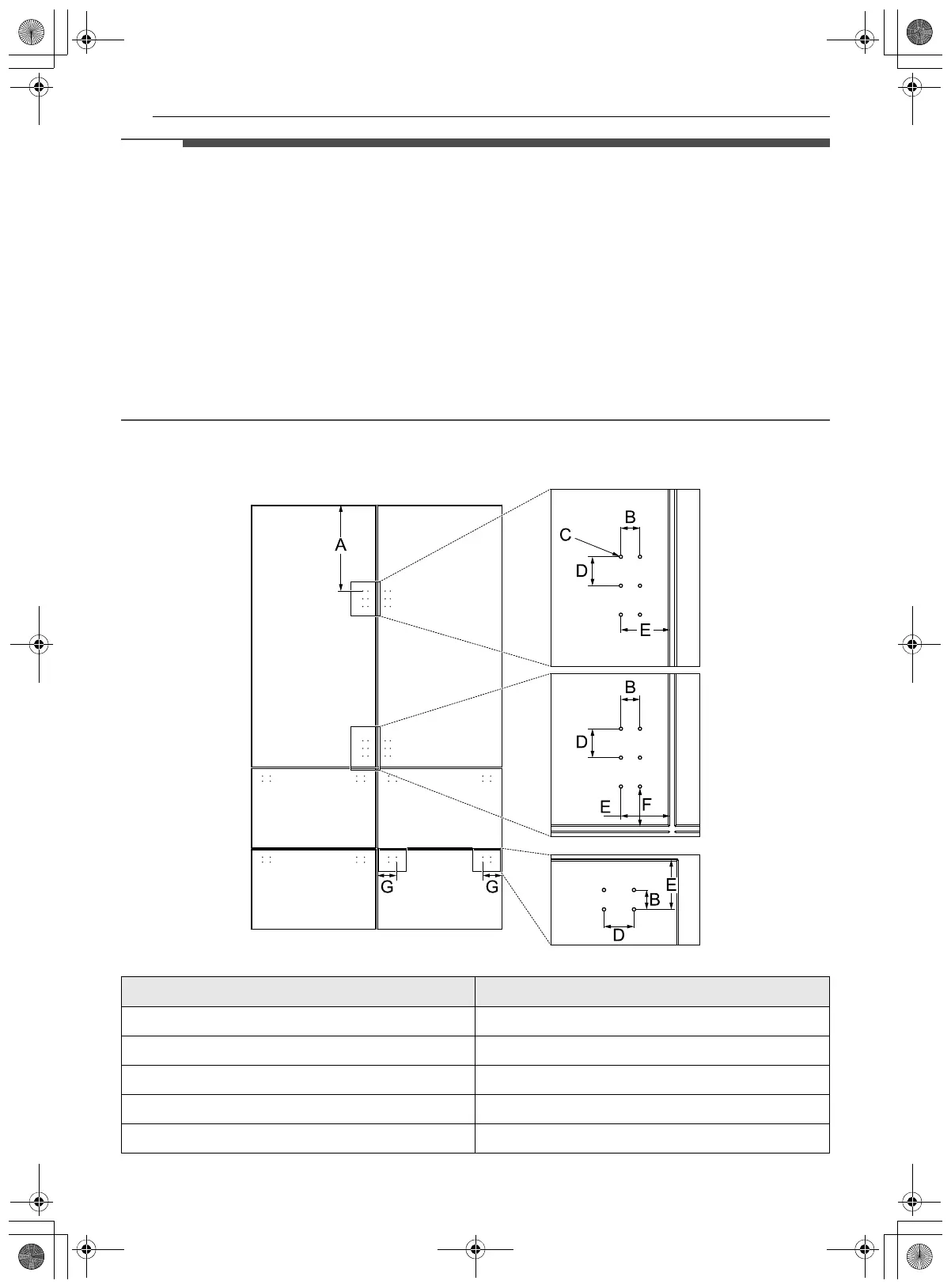

SKS door handle installation dimensions of custom panel
- Dimensions
A 16 1/4" (412.8 mm)
B 15/16" (23.8 mm)
C Φ 3/16" (4.8 mm)
D 1 7/16" (36.5 mm)
E 2 7/16" (61.9 mm)
