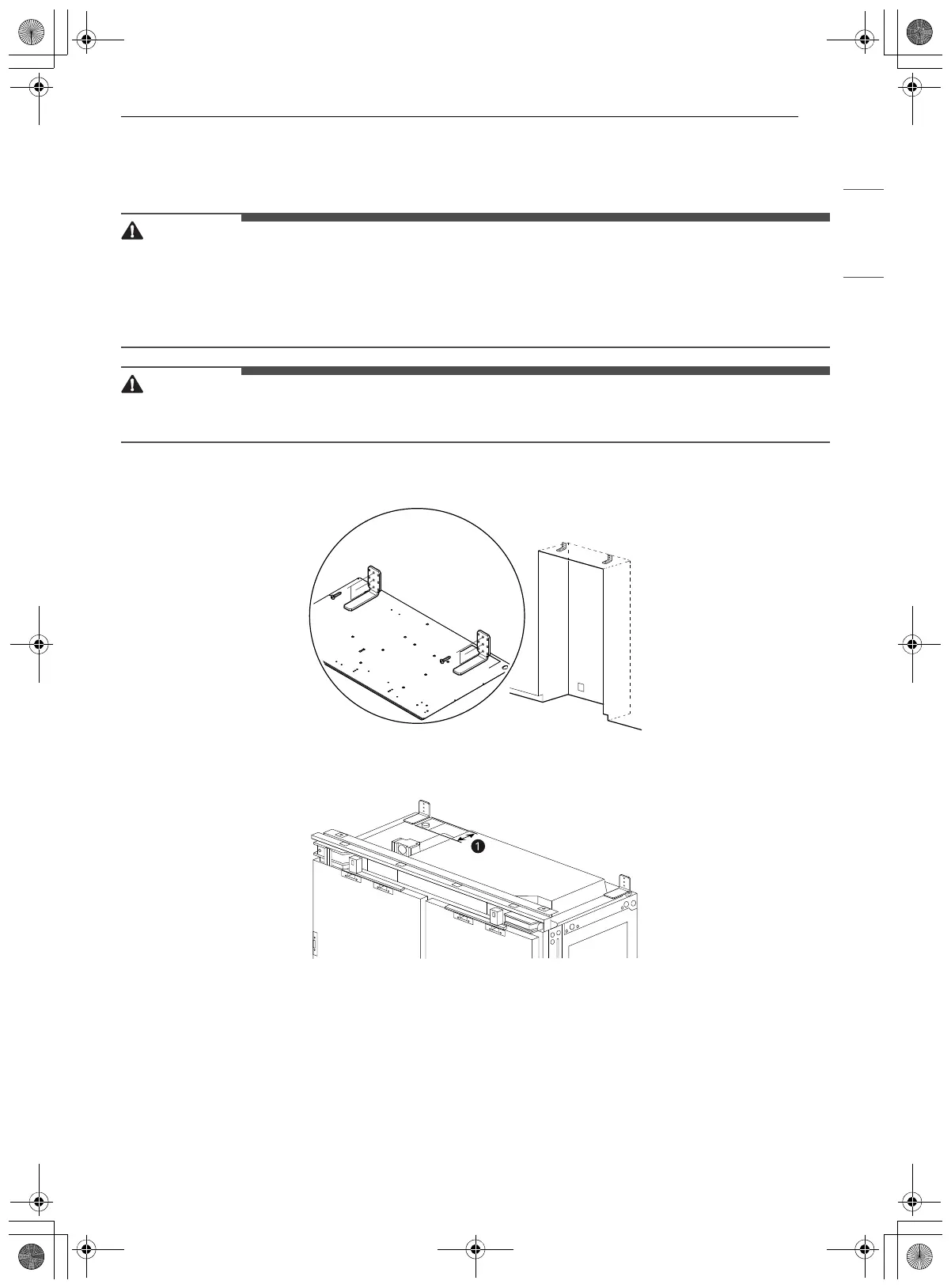

Moving Appliance into Enclosure
Installing the Anti-tip Brackets
• To avoid injury or damage, check for electrical wires or plumbing in walls before drilling or installing
screws.
• The anti-tip bracket should be firmly fixed to a concrete wall/wood with thickness of 9/16" (15 mm) or
greater, or a wall with equivalent strength. (The structure where the bracket is fixed should be a solid
structure that can withstand a force of 154 lbf (70 kgf) or greater.)
• To avoid injury, observe all safety practices during installation, including wearing safety glasses and
other safety apparel.
Install the anti-tip brackets at the rear of the enclosure, locating the brackets based on stud locations and
product and enclosure dimensions.
The anti-tip brackets must overlap
a a minimum of 2 1/8" (54 mm) over the appliance to secure the
appliance.
1 Install the anti-tip brackets at the rear of the enclosure, with the base of the brackets 3 5/16" (84 mm)
from the top of the enclosure.
