16 INSTALLATION
2 Make sure the anti-tip brackets are securely attached to a stud or other weight-bearing structure. Do
not attach brackets to drywall, cinderblock, or uncured concrete.
To ensure safety, at least one bracket must be attached to a stud. Attach brackets to studs wherever
possible within the enclosure. Use a minimum of 3 screws or bolts to attach each bracket.
• 2 anti-tip brackets are required for each appliance.

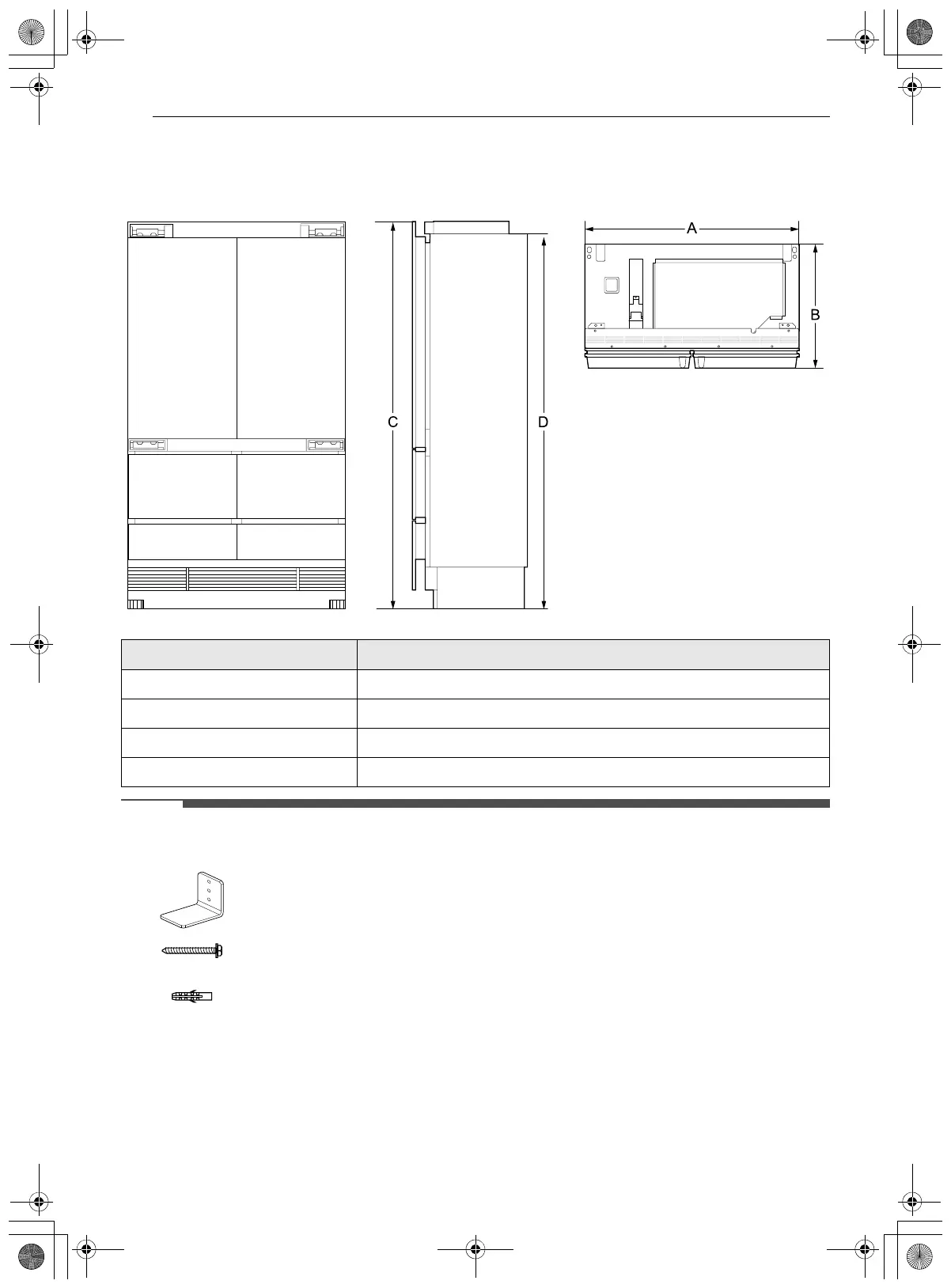

- Dimensions
A 47 1/4" (1200 mm)
B 23 7/8" (607 mm)
C 83 1/2" (2121 mm)
D 80 9/16" (2046 mm)
Anti-tip brackets (2 ea)
Screw for concrete or wood wall
5X45 (Hex) (6 ea)
6x30 (6 ea)
