7BEFORE INSTALLATION
ENGLISH
• The appliance comes with a UL listed 3-wire
power supply cord.
• The appliance requires a 3-wire receptacle.
• The receptacle must be installed by a licensed
electrician only.
Grounding
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for the electric current.
• Improper connection of the equipment
grounding conductor may result in electric
shock. Have the appliance checked by a qualified
electrician or service technician if you are in
doubt as to whether the appliance has been
properly grounded.
• Some local regulations may require a separate
ground. In such cases, the required ground wire,
clamp and screw are available as a separate
accessory and must be purchased separately.
• Never ground the appliance to plastic plumbing
lines, gas lines or water pipes.
Water Connection
• Connect the appliance to potable water only.
• A cold water connection is required for
operation of the automatic icemaker. The water
pressure must be between 20 and 120 psi. (138 -
827 kPa).
• The installation must comply with local plumbing
regulations.
• A separate shut-off valve must be installed for
the appliance water connection.
• Do not use a self-piercing valve.
• Do not install the shutoff valve for the water
behind the appliance. The shutoff valve must be
easily accessible.
• Install the water connection in the area shown in
the diagram under Dimensions and Clearances.
The water supply line can be located on the right
side, on the left side, or in the floor. The
maximum outer diameter of the supply line
(without fittings) is 3/8" (9.5 mm).

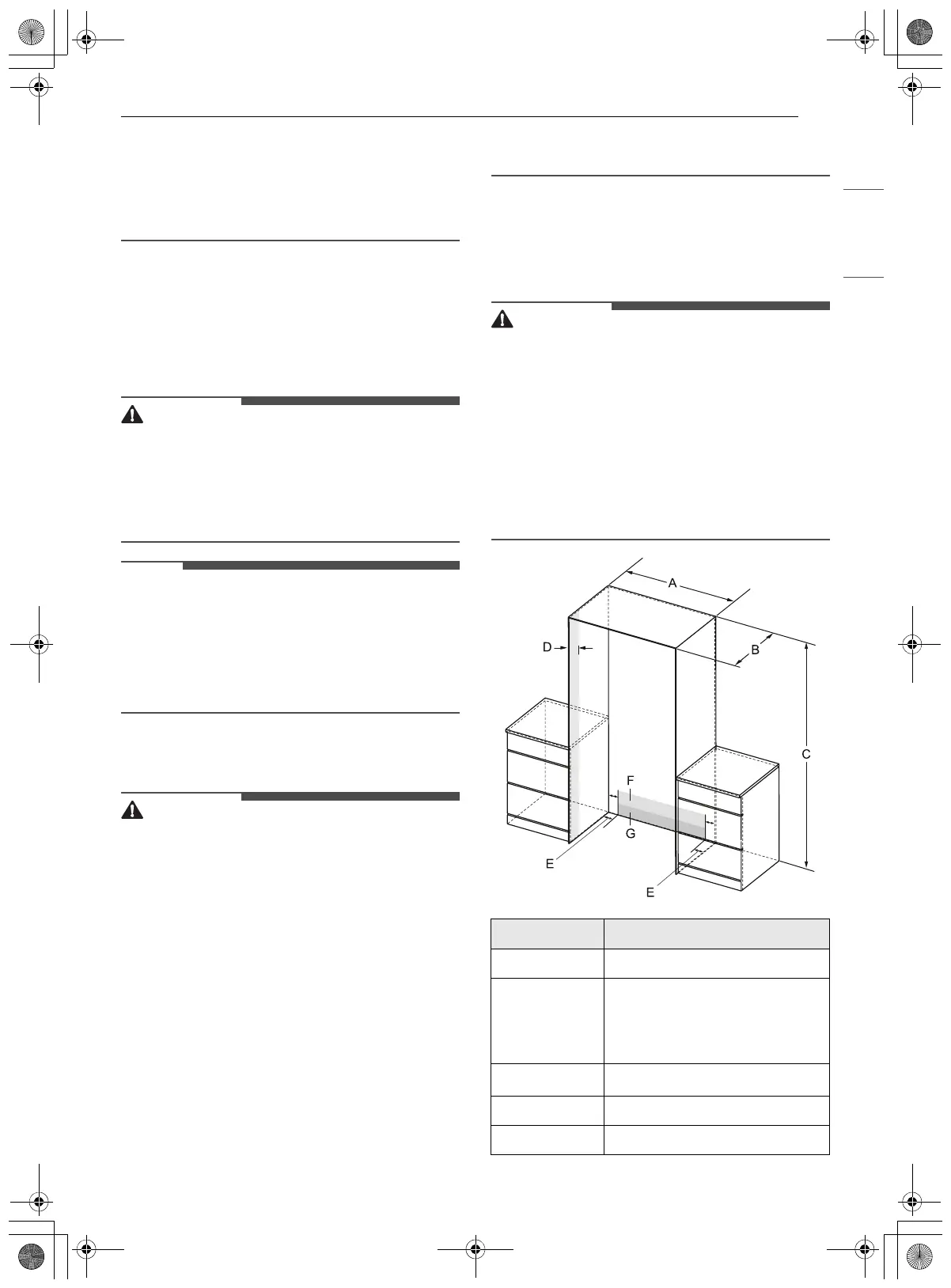

Dimensions and Clearances
Cutout Dimensions
• The anti-tip bracket should be firmly fixed to a
concrete wall/wood with a thickness of 15 mm or
greater, or a wall with equivalent strength. (The
structure where the bracket is fixed should be a
solid structure that can withstand a force of 154
lbf (70 kgf) or greater.)
• Before installing the appliance, make sure that
the enclosure is the correct size. For the
appliance to operate properly, the notch in the
bottom front plate must be aligned with the
center of the appliance.
- Cutout Dimension
A 47 1/2" (1206.5 mm)
B
225" (635 mm) for flush
installation
224" (610 mm) for proud
installation
C
284" (2134 mm)
D 4" (102 mm)
E 1 3/8" (35 mm)
