9BEFORE INSTALLATION
ENGLISH
• Door Handle Clearances
- The door handle depth must be added to the
dimension as noted to determine the total
clearances required from adjacent cabinets or
walls. This clearance will vary depending on
the custom handle used. When using the
Signature Kitchen Suite handles or the
Signature Kitchen Suite stainless Steel door
panel kit with handles (optional accessories),
the door handle clearance with the door open
115° is 12" (305 mm).

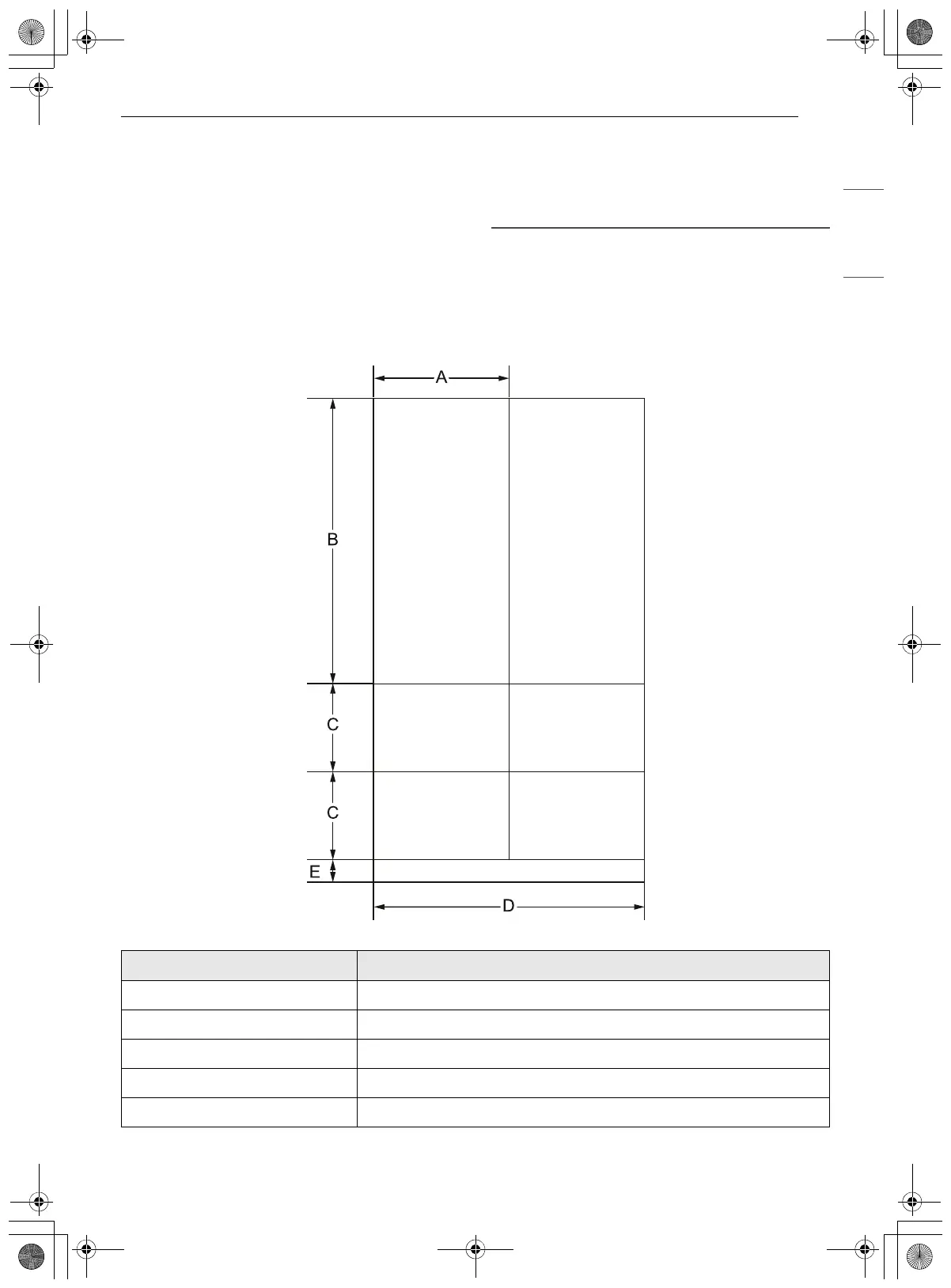

Custom Panel Dimensions
3/4" (19 mm) custom panel dimensions for flush installation
- Dimensions
A 23 1/2" (596.5 mm)
B 49 5/16" (1252 mm)
C 15" (381.5 mm)
D 47 1/4" (1200 mm)
E 4" (102 mm)
en-us_main.book.book Page 9 Monday, January 16, 2023 5:19 PM
