Signode BXT 2 - Welding unit

ak 3.11
16
BXT 2 BXT 2-19

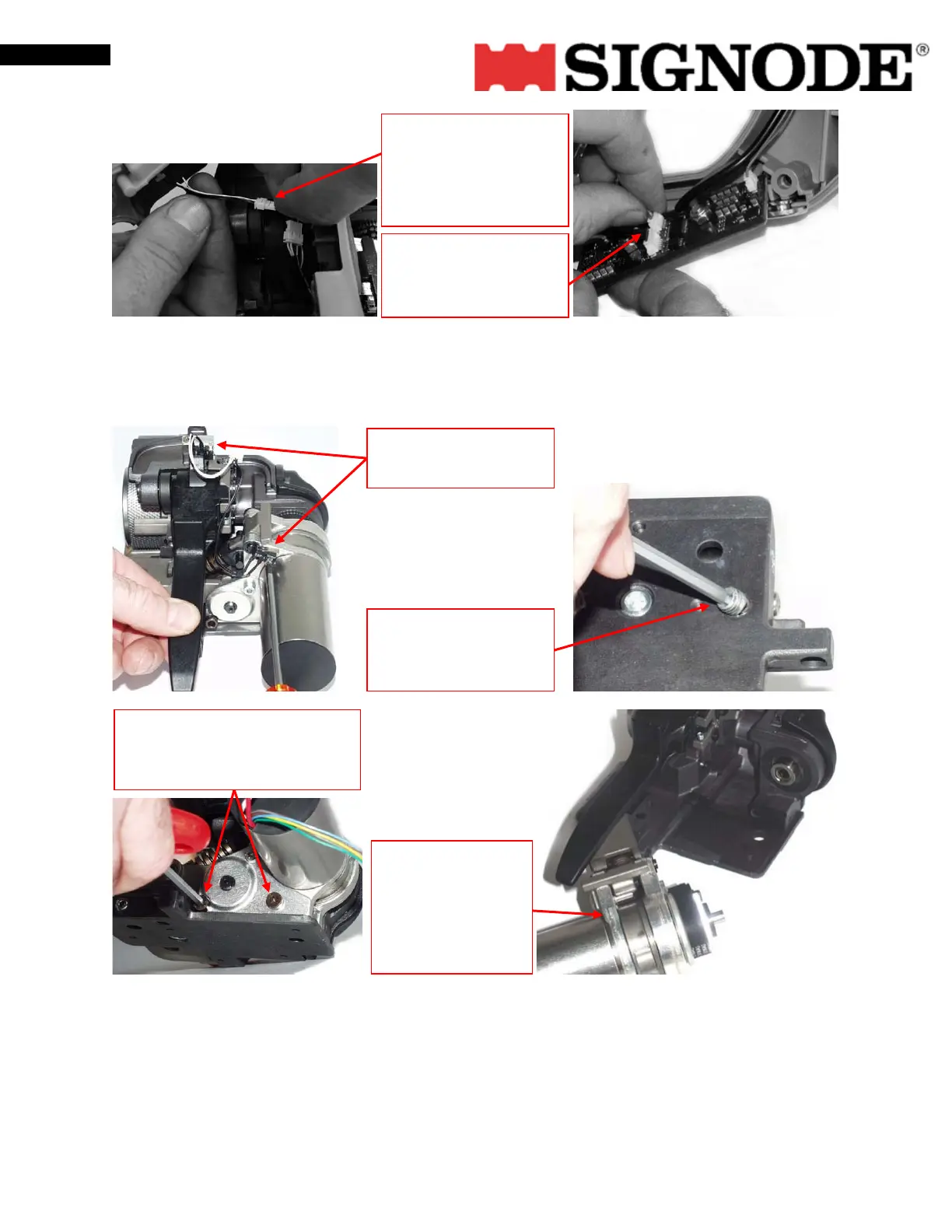

7.2. Welding unit
1. Remove cable
tensioning (Pos. 103)
2. Remove set screw
and compression
spring (Pos. 86 & 169).
3. Loosen centering screws (2x
Pos. 101) and remove them
completely.
4. The whole
welding unit can
now be pulled
backwards.
7. Disconnect the
Intermediate cable
(Pos. 201). Remove the
left part of the housing
8. Disconnect the
motor hall sensor
wirings
