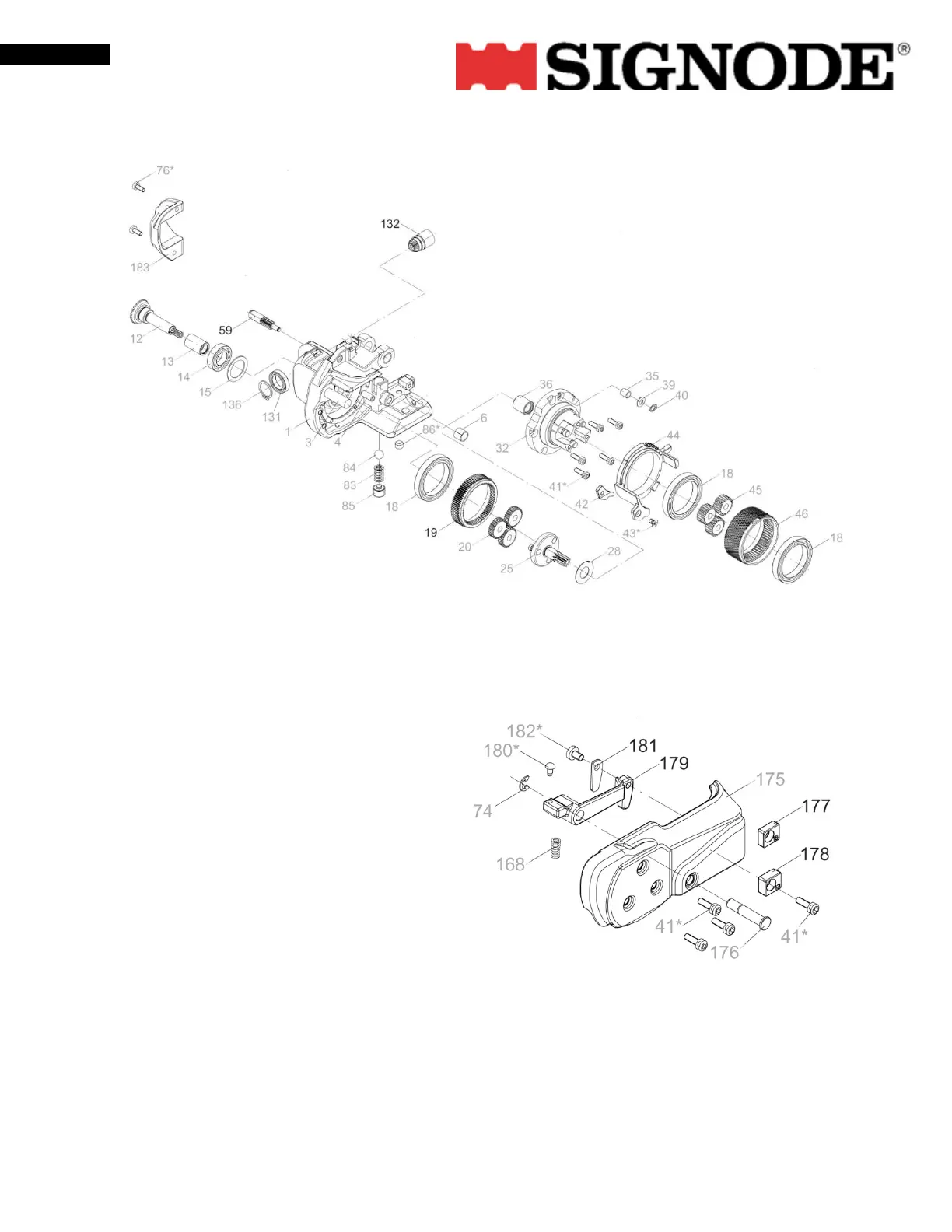

3.5. Tensioning gear
There is a free wheel integrated into the bevel gear pinion (Pos. 132). Provided the appropriate turning
direction the free wheel delivers the torque to the 2 stage planetary gear and the tension wheel. To
loose the tension the ring gear (Pos.19) is released by the pawl axle (Pos. 59). See also chapter 3.3).
3.6. Side cover with strap guides
The strap guide (Pos. 179) is integrated into the
side cover. To set up the required strap width
the shims (Pos. 177, 178, 181) have to be
added or removed.
4. Wear parts
Tension wheel, toothed plate and knife are wear parts. In order to reduce costs for the enduser these
parts can easily be replaced by themselves. The operating instructions provide the necessary information
in chapter 7.1 – 7.3.
