3. Tool Design

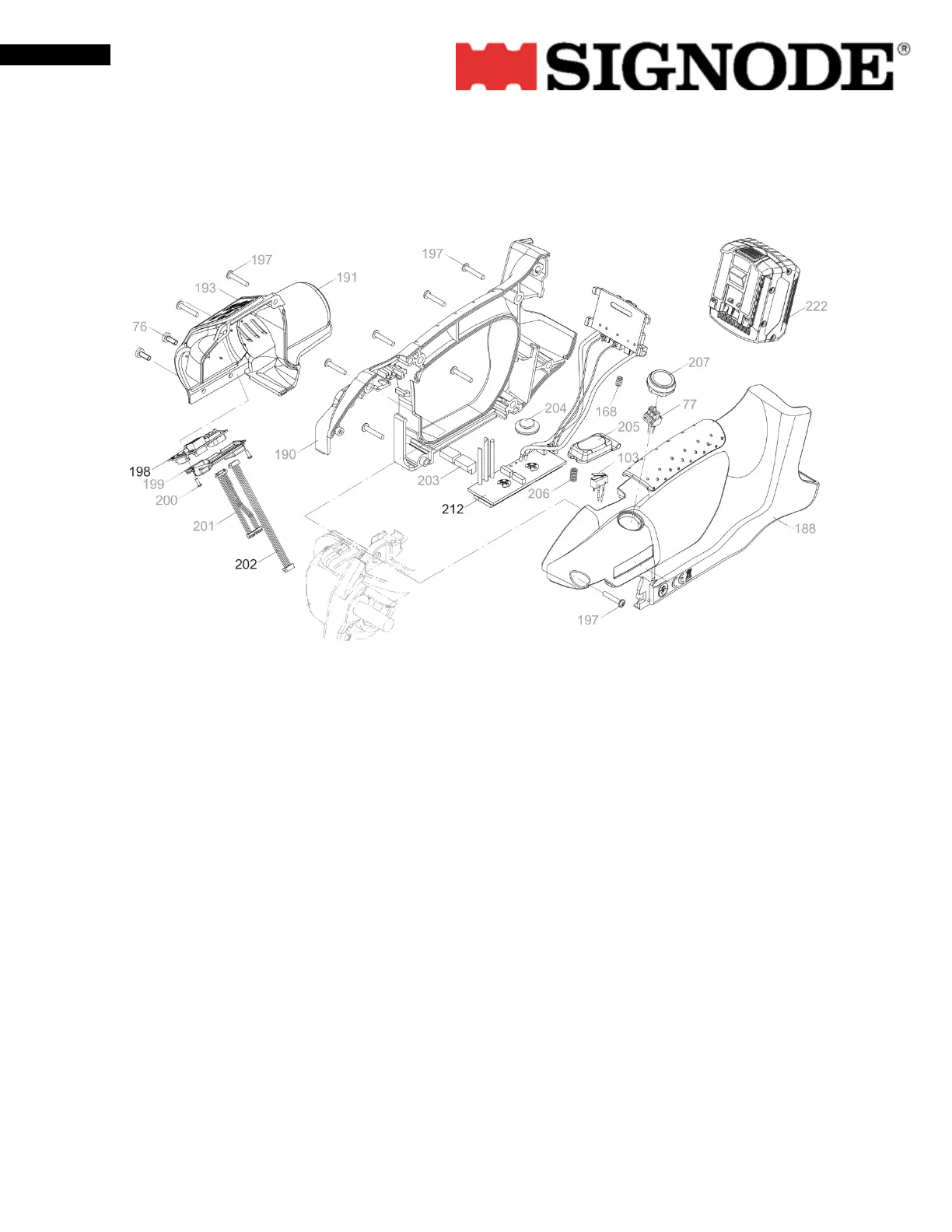

3.1. Housing/electrical components:
The housing is carried out in 3 pieces. All processes are controlled and monitored by the Printed circuit
board (pos. 198). The PCB interacts via the signal cable (pos. 202) with the motor power electronics (pos.
212). The power electronics is required to run the brushless motor. You can find a schematic wiring
diagram in chapter 13.
